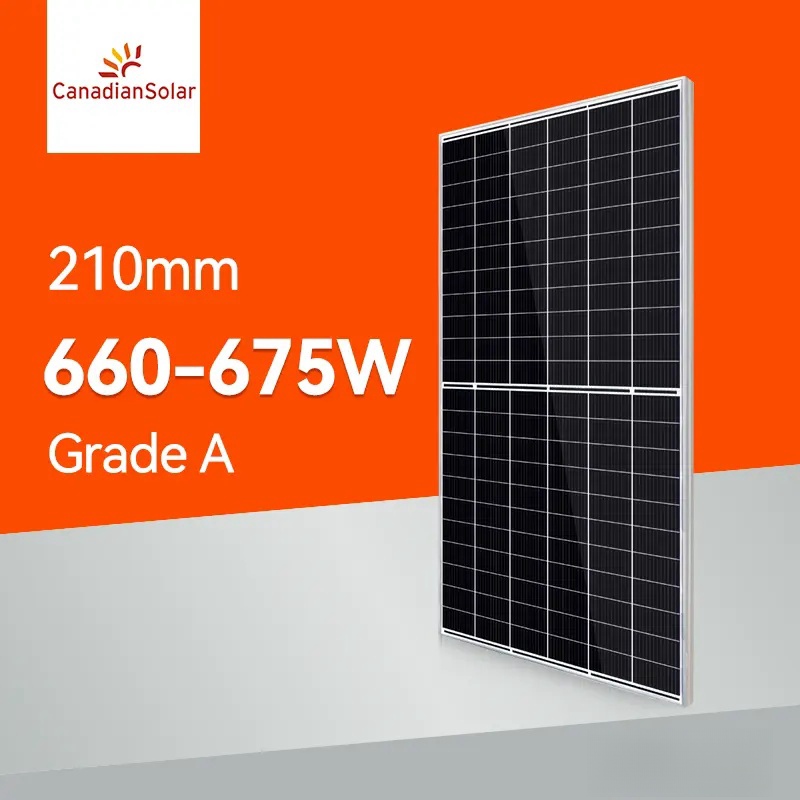

Tier 1 Canadian Solar Panel 660W 665W 670W 675W 210mm Monocrystalline Photovoltaic
- High Efficiency Performance: The Canadian Solar Panel delivers impressive energy conversion efficiency, ensuring maximum power output.
- Advanced Half-Cell Technology: Using half-cell design reduces internal resistance and improves overall performance, even under shaded conditions.
- Superior Durability: Built to withstand harsh environmental conditions, offering long-lasting performance with enhanced resistance to potential-induced degradation (PID).
- Enhanced Power Output: This Tier 1 panel is optimized for maximum energy yield, ensuring better performance in real-world conditions, even at low light levels.
Tier 1 Canadian Solar Panel MECHANICAL SPECIFICATION
|
|||
Format
|
2384 ? 1303 ? 35 mm
|
||
Weight
|
39.4kg±5%
|
||
Cell
|
132 monocrystalline PERC half cell,210 mm
|
||
Junction Box
|
Protection class IP67,with bypass diodes
|
||
Cable
|
4mm2 Solar cable
|
||
Connector
|
MC4 Compatible
|
CS7N
|
660MS
|
665MS
|
670MS
|
675MS
|
Nominal Max. Power (Pmax)
|
660W
|
665W
|
670W
|
675W
|
Opt. Operating Voltage (Vmp)
|
38.3V
|
38.5V
|
38.7V
|
38.9V
|
Opt. Operating Current (Imp)
|
17.24A
|
17.28A
|
17.32A
|
17.36A
|
Open Circuit Voltage (Voc)
|
45.4V
|
45.6V
|
45.8V
|
46.0V
|
Short Circuit Current (Isc)
|
18.48A
|
18.51A
|
18.55A
|
18.59A
|
Module Efficiency
|
21.2%
|
21.4%
|
21.6%
|
21.7%
|
