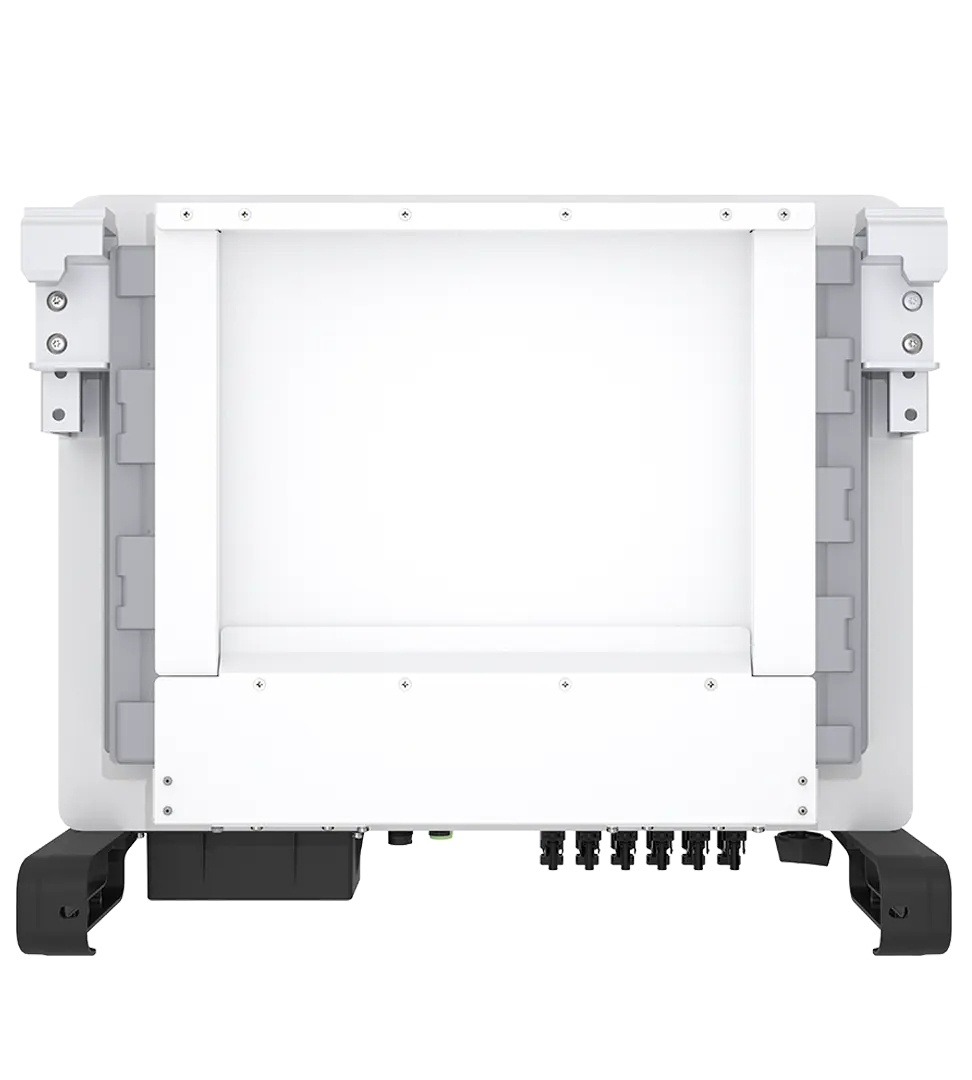

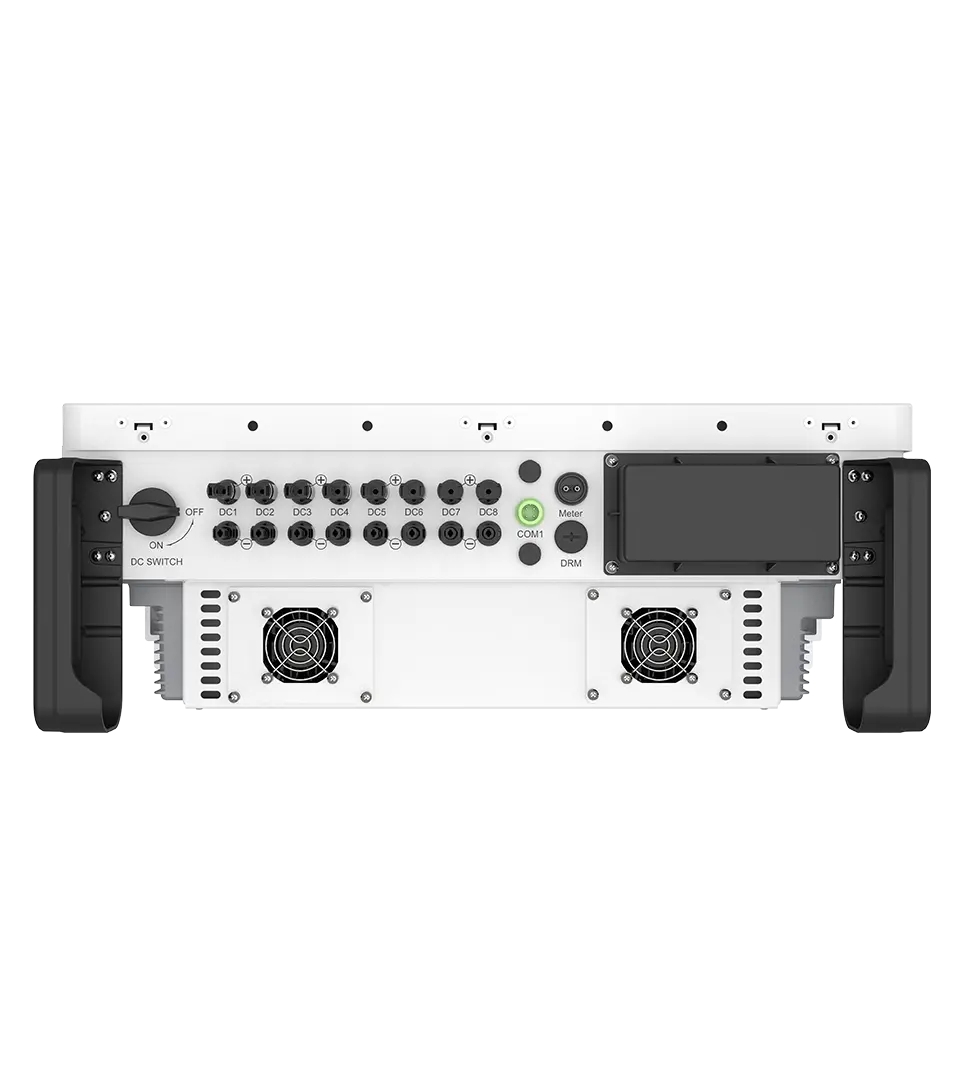

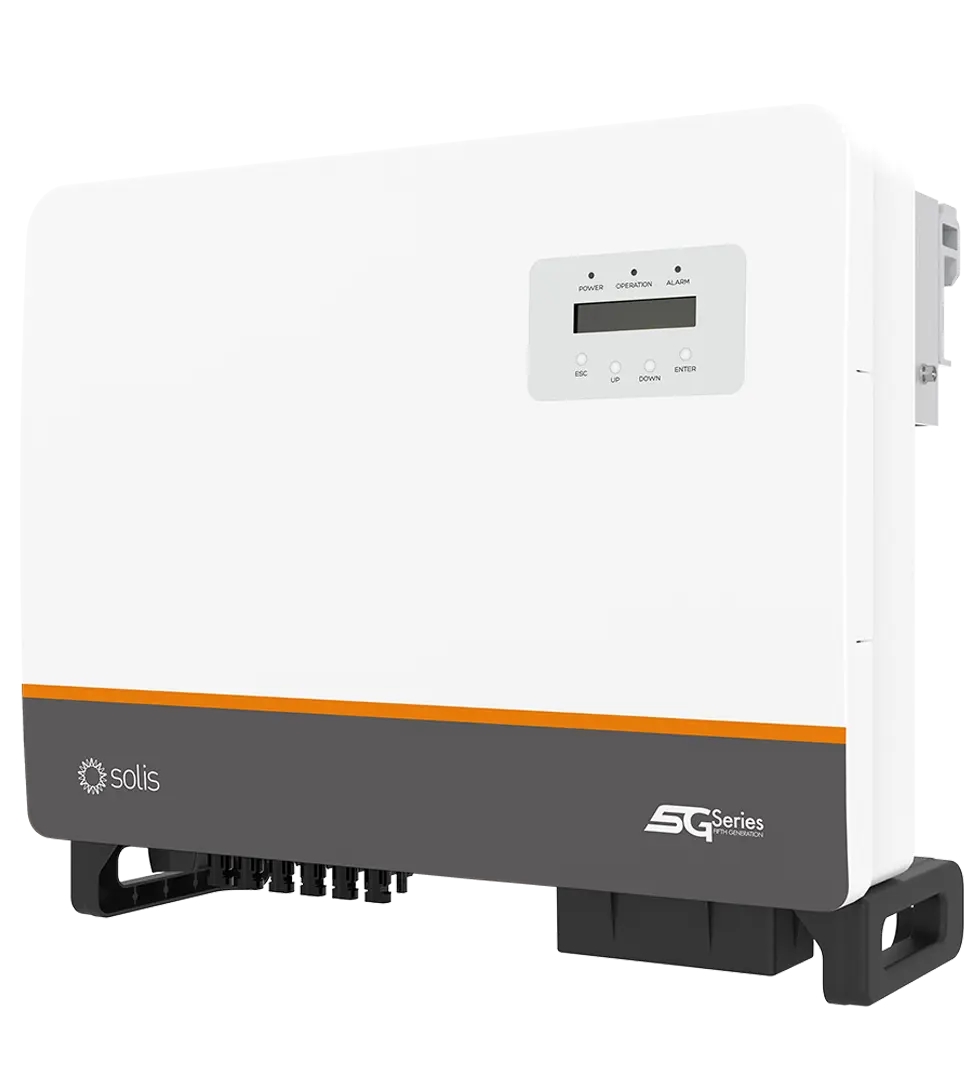

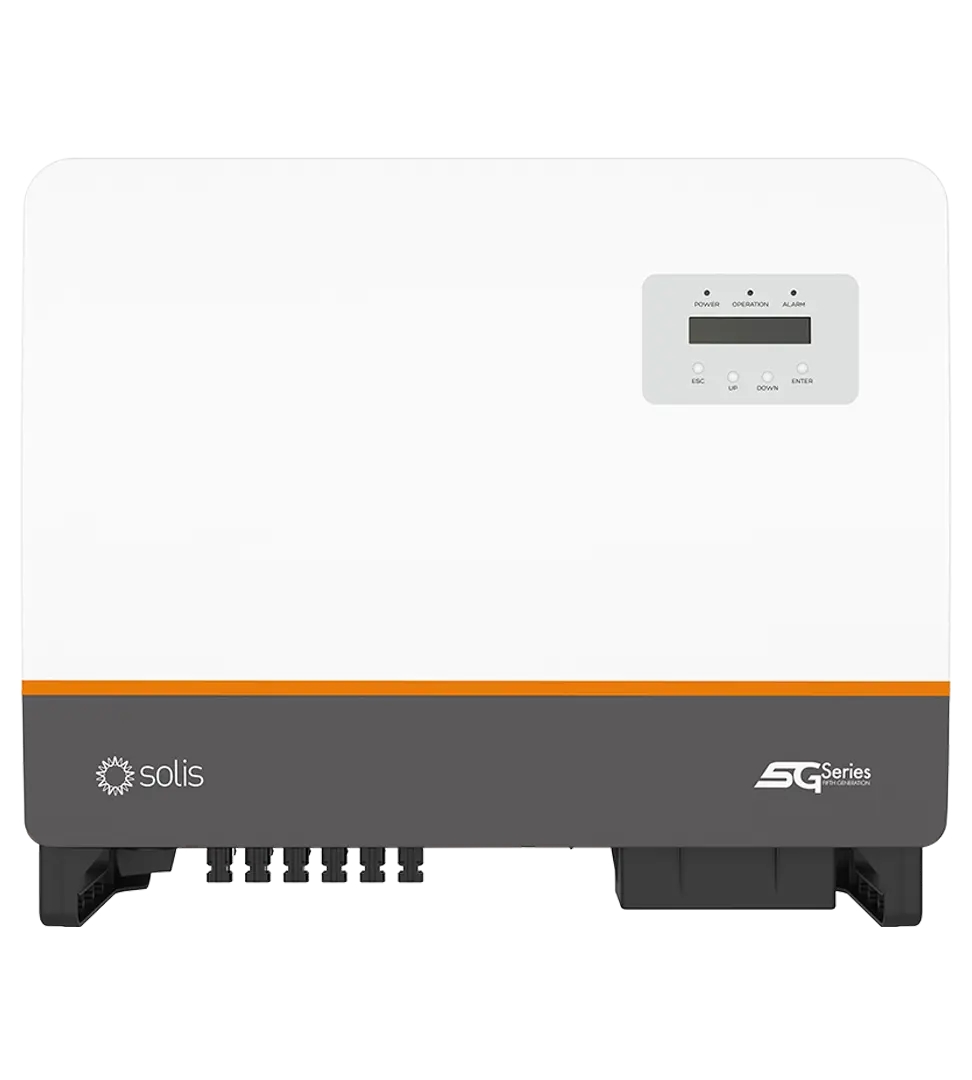

Solis S5-GC50K On-grid Three-Phase Inverter

Name: Solis S5-GC50K On-grid Three-Phase Inverter
SKU: S5-GC50K
Availability: InStock

$1,953.00

Brand Name:Solis

Model: S5-GC50K

Type: Three-phase

SKU: S5-GC50K Category: Solar Inverter

MODEL	?S5-GC50K
MAX. DC POWER	75 kW
MAX. DC VOLTAGE(VDC)	1100 V
START VOLTAGE	180 V
NOMINAL VOLTAGE	600 V
MPP VOLTAGE RANGE	200 – 1000 V
NO. OF MPP TRACKERS	4 / 8
MAX INPUT CURRENT	4 × 32 A
MAX. SHORT-CIRCUIT CURRENT	4 × 40 A
RATED OUTPUT POWER	50 kW
MAX. APPARENT OUTPUT POWER	55 kVA
MAX. OUTPUT POWER	55 kW
RATED GRID VOLTAGE	3/PE, 480 V
RATED GRID FREQUENCY	50 Hz/60 Hz
RATED GRID OUTPUT CURRENT	60.1 A
MAX. OUTPUT CURRENT	66.2 A
POWER FACTOR	> 0.99 (0.8 leading – 0.8 lagging)
THDI	< 2%.
MAX.EFFICIENCY	98.8%
EUROPEAN EFFICIENCY	98.4%
DC REVERSE POLARITY PROTECTION	yes
SHORT CIRCUIT PROTECTION	yes
OUTPUT OVER CURRENT PROTECTION	yes
SURGE PROTECTION	DC Type II / AC Type II
GRID MONITORING	yes
ANTI-ISLANDING PROTECTION	yes
TEMPERATURE PROTECTION	yes
MULTI PEAK SCAN	yes
INTEGRATED AFCI I 2.0	Optional
INTEGRATED DC SWITCH	yes.
DIMENSIONS (W × H × D)	647 × 629 × 252 mm
WEIGHT	42.1 kg
TOPOLOGY	Transformerless
SELF-CONSUMPTION (NIGHT)	< 1 W
OPERATING AMBIENT TEMPERATURE RANGE	-25 ~ +60°C
RELATIVE HUMIDITY	0 – 100%
INGRESS PROTECTION	IP66.
NOISE EMISSION (TYPICAL)	< 60 dB(A)
COOLING CONCEPT	Intelligent fan-cooling
MAX. OPERATION ALTITUDE	4000 m
SAFETY / EMC STANDARD	IEC/EN 62109-1/-2 and IEC/EN 61000-6-2/-3.
DC CONNECTION	MC4 connector
AC CONNECTION	OT terminal
DISPLAY	LCD
COMMUNICATION	RS485, Optional: Wi-Fi, GPRS
