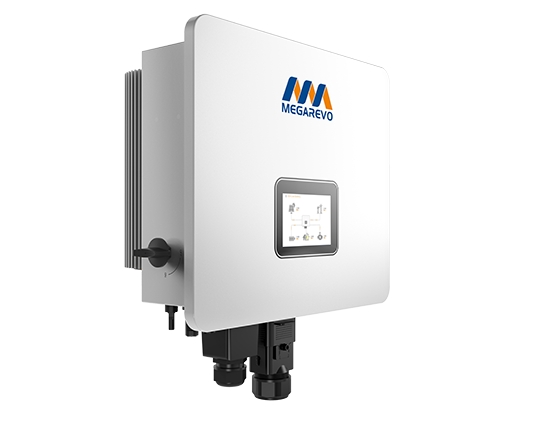

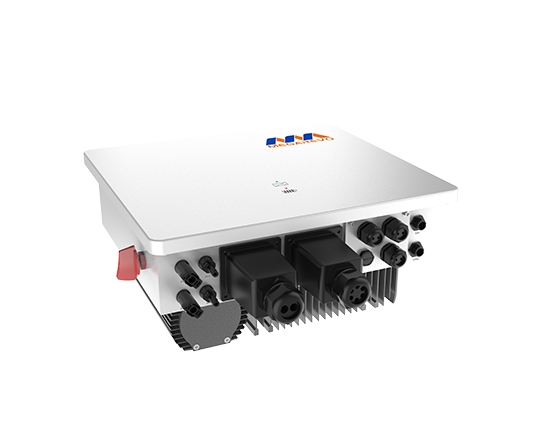

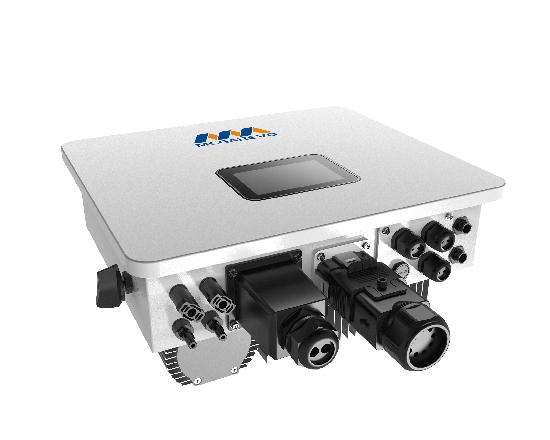

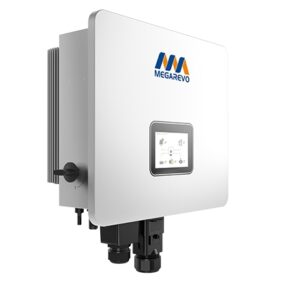

Megarevo R3KL1-G2 Hybrid Single-Phase Inverter

Name: Megarevo R3KL1-G2 Hybrid Single-Phase Inverter
SKU: R3KL1-G2
Availability: InStock

$727.00

Brand Name:Megarevo

Model: R3KL1-G2

Type: Single-phase

SKU: R3KL1-G2 Category: Solar Inverter Tag: 3kw hybrid inverter

Maximum efficiency ≥98%. Small size, saving installation space.
Support multi-machine parallel connection. Compatible with a variety of battery connections such as lead-acid and lithium-ion batteries.
Passed CE, 1V, IEC/EN62109-1/-2, IEC/EN62477-1, South Africa NRS097-2-1; 2017, IEC/EN 61000-6-1, IEC/EN 61000-6-3 test certification.

MODEL	R3KL1-G2
PV string input?
Max. Input power (kW)	4.5
Start-up voltage (V)	110
Max. PV input voltage (V)	550
MPPT range/nominal (V)	80~500/360.
Max.input current of single MPPT (A)	16/16
Max. short-circuit current (A)	18.5/18.5
AC output
Rated power (kW)	3
Max.AC current output to grid (A)	14.3
Nominal voltage/range (V)	230 /176~270
Frequency (Hz)	50 /60
Power factor	1(0.8 leading-0.8 lagging)
THDI	<3%
AC grid type	L+N+PE
Battery
Battery voltage range (V)	40~58
Max. charging voltage (V)	58
Max. charge/discharge current (A)	60/60
Battery type	Lithium /Lead-acid
Communication Interface	CAN/RS485
Max.battery output power/ duration(kW/min)	/
EPS output	yes
Rated power? (kW)	3
Rated voltage (V)	230
Max.AC current output to grid (A)	14.3
Rated frequency (Hz)	50 / 60
Automatic switchover time (ms)	<10
THDu	<2%
Overload capacity	110%, 60S/ 120%, 30S/ 150%, 10S
General data
Battery chage/dischage efficiency	96%
PV Max. efficiency	98%
Europe efficiency	99.9%
MPPT efficiency	< 1 W
Ingress protection	IP65
Noise emission (dB)	0 – 100%
INGRESS PROTECTION	IP66.
NOISE EMISSION (TYPICAL)	<35
Operation temperature (℃)	-25～60
Cooling	Natural
Relative humidity	0 ~95%（non-condensing）
Operating altitude (m)	2,000 (>2,000 Derating)
Dimensions WDH (mm)	454.5220467
Net weight (kg)	19（20 With Generator Input)
Topology	Non-isolated
Standby loss(W)	<15
Display	Optional (colorful touch screen /no screen)
Interface:RS485/Wifi/4G/CAN/DRM	Yes/Opt/Opt/Yes/Yes
