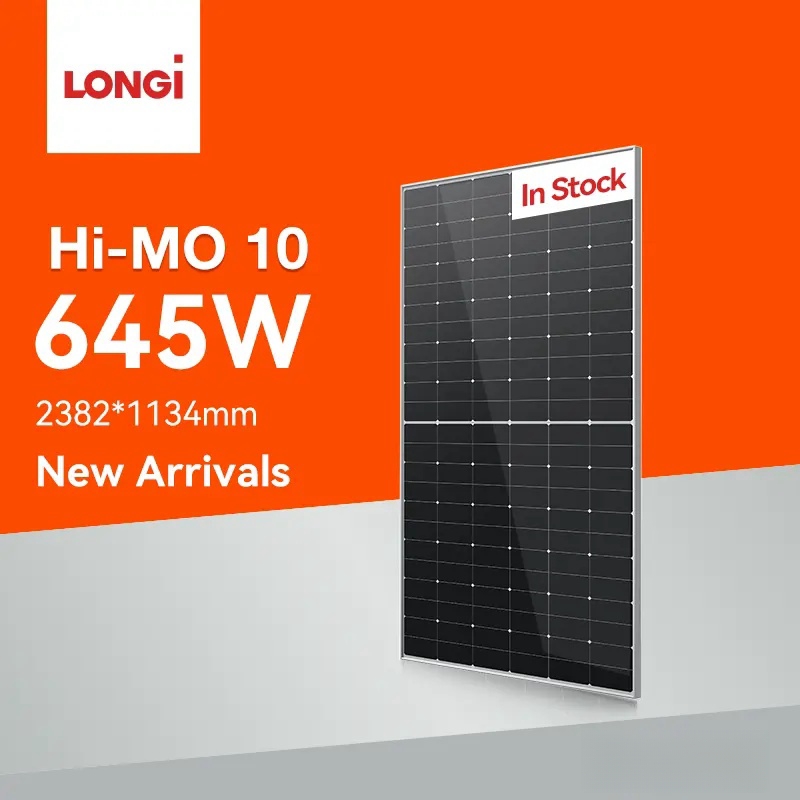

Longi HiMO X10 Solar Panel TaiRay Wafer 650W-630W Photovoltaic Modules

Name: Longi HiMO X10 Solar Panel TaiRay Wafer 650W-630W Photovoltaic Modules
SKU: LR7-72HVH
Availability: InStock

$75.80

Module Efficiency: 22.30%

Product Warranty: 25 Years

Power Warranty: 25 Years

SKU: LR7-72HVH Category: Solar Energy Panel Tag: Longi HiMO X10 Solar Panel

Longi HiMO X10 Solar Panel TaiRay Wafer 650W 645W 640W 630W Photovoltaic Modules

Industry-Leading Efficiency: Utilizes cutting-edge cell technology to achieve maximum energy conversion, delivering up to 22.3% efficiency.
Superior Low-Light Performance: Designed to perform excellently under low irradiance conditions, ensuring reliable energy production even in challenging environments.
Innovative HPBC Technology: Incorporates High-Performance Back Contact (HPBC) design, enhancing durability and reducing power loss for long-term reliability.

Longi HiMO X10 Solar Panel Series PV Modules
Module	Power (Watt)	Type	Size (mm)	Weight (kg)	Panel Max. Efficiency
LR7-72HVH 630-650M	630-650	Mono-facial	2382*1134	28.5	24.1%
LR7-72HVD 625-645M	625-645	Bifacial	2382*1134	33.5	23.9%
LR5-54HVH 465-490M	465-490	Black Frame	1800*1134	21.6	24.0%
LR5-54HVB 465-490M	465-490	Full Black	1800*1134	21.6	24.0%

ELECTRICAL CHARACTERISTICS
Minimum performance at standard test conditions, stc1 (power tolerance 0~+5w)
Model	LR7-72HVH-630M	LR7-72HVH-635M	LR7-72HVH-640M	LR7-72HVH-645M	LR7-72HVH-650M
Max. Power	630W	635W	640W	645W	650W
Open Circuit Voltage	53.50V	53.60V	53.70V	53.80V	53.90V
Short Circuit Current	14.97A	15.05A	15.13A	15.21A	15.29A
Max. Power Voltage	44.16V	44.26V	44.36V	44.46V	44.56V
Max. Power Current	14.27A	14.35A	14.43A	14.56A	14.59A
Efficiency2	23.3%	23.5%	23.7%	23.9%	24.1%
