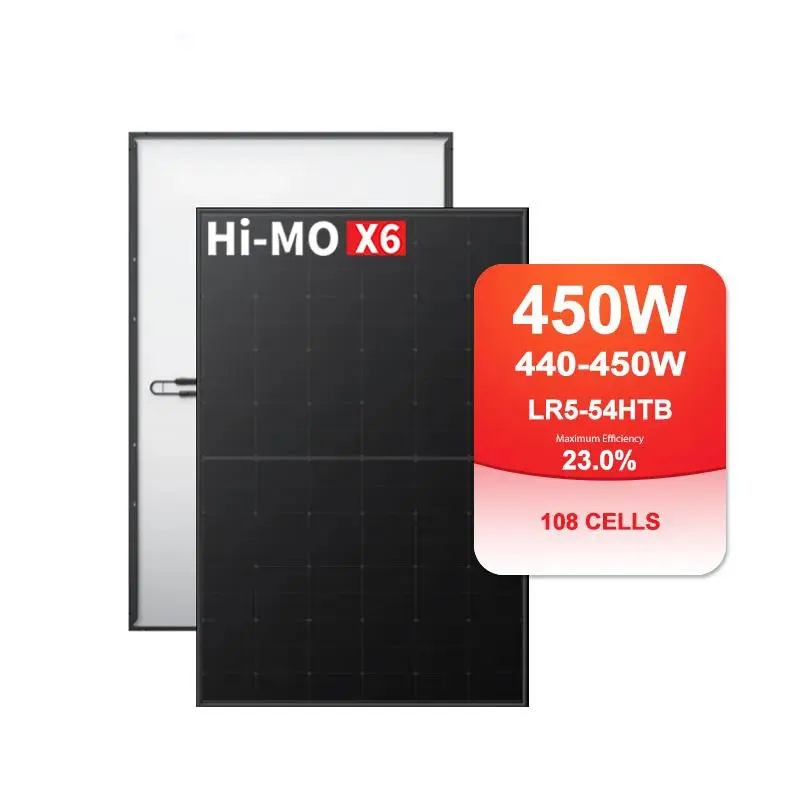

Longi Ultra Black HiMo X6 Pv Module HPBC Cells 420W-450W

Name: Longi Ultra Black HiMo X6 Pv Module HPBC Cells 420W-450W
SKU: LR5-54HTB
Availability: InStock

$62.90

High Efficiency
Low LCOE (Levelized Cost of Energy)
Durability
Enhanced Performance in Low Light
Certified Safety

SKU: LR5-54HTB Category: Solar Energy Panel

Longi Ultra Black HiMo X6 Pv Module LR5-54HTB HPBC Cells 420W 430W 440W 445W 450W

Mechanical Characteristics
Cell Orientation	108 (6×18)
Junction Box	IP68
Output Cable	4mm2, ±1200mm length can be customized
Glass	Single glass, 3.2mm coated tempered glass
Frame	Anodized aluminum alloy frame
Weight	20.8kg
Dimension	1722×1134×30mm

SPECIFICATIONS(STC)
Model Type	LR5-54HTB-440M	LR5-54HTB-445M	LR5-54HTB-450M
Maximum Power(Pmax/W)	440	445	450
Open Circuit Voltage(Voc/V)	39.83	40.03	40.23
Short Circuit Current(Isc/A)	14.15	14.23	14.31
Voltage at Maximum Power(Vmp/V)	33.56	33.76	33.96
Current at Maximum Power (lmp/A)	13.12	13.19	13.27
Module Efficiency (%)	22.5	22.8	23.0

Operating Parameters
Operational Temperature	-40°C -+85°C
Power Output Tolerance	0-3%
Voc and lsc Tolerance	±3%
Maximum System Voltage	DC1500V (IEC/UL)
Maximum Series Fuse Rating	25A
Nominal Operating Cell Temperature	45±2°C
Protection Class	Class II
Fire Rating	UL type 1 or 2?IEC ClassC
