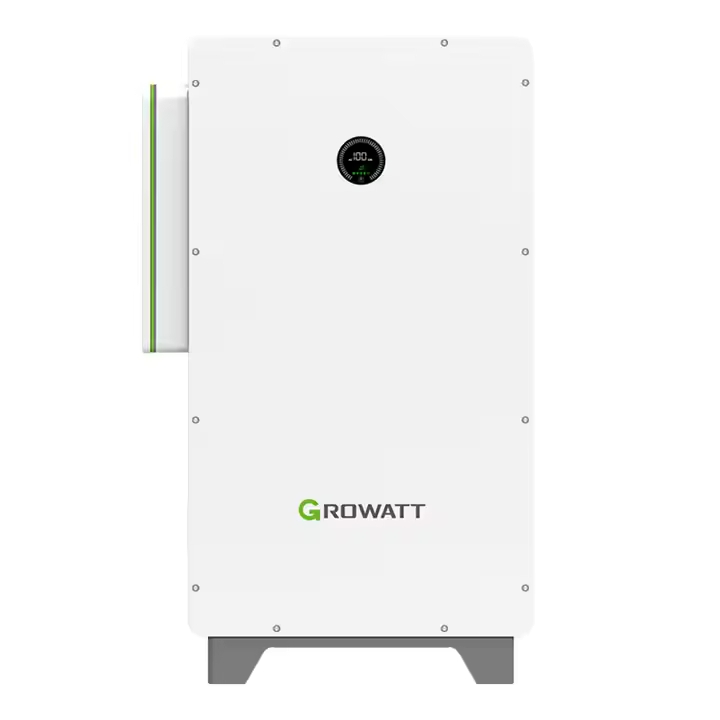

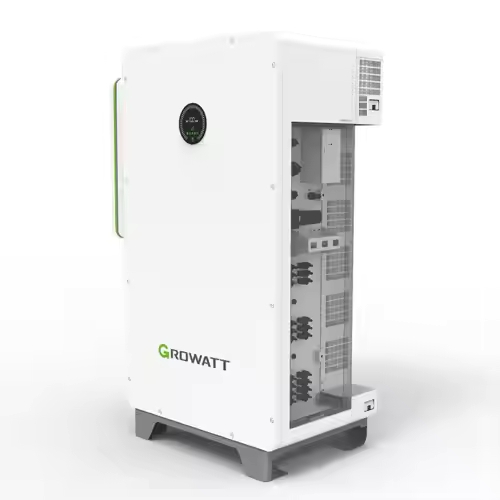

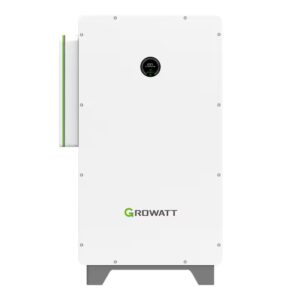

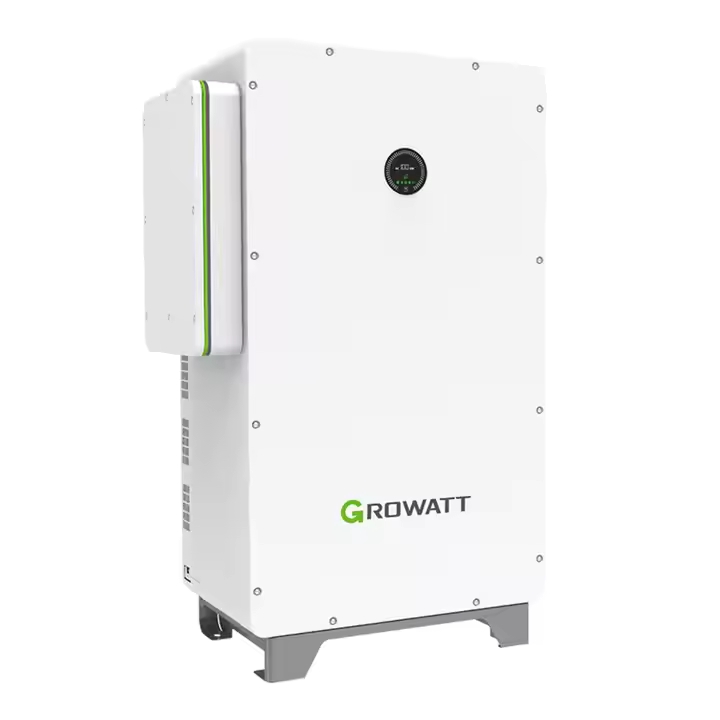

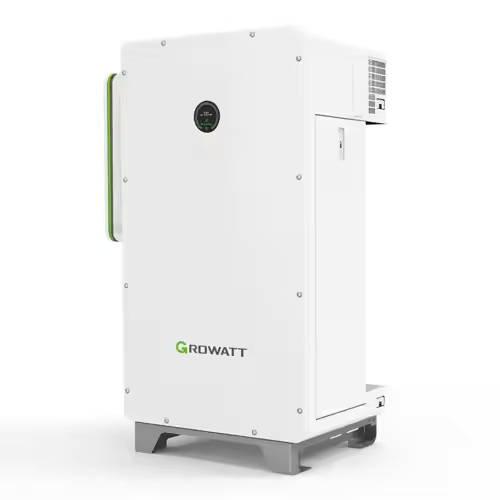

Growatt WIT 50kW Hybrid Inverter WIT-50K-HU

Name: Growatt WIT 50kW Hybrid Inverter WIT-50K-HU
SKU: WIT-50K-HU
Availability: InStock

$5,788.00

Brand Name:Growatt

Model: WIT-50K-HU

Type: Three Phase

SKU: WIT-50K-HU Category: Solar Inverter Tags: Growatt Hybrid Inverter, WIT-50K-HU

Growatt 50kW Hybrid Inverter WIT-50K-HU

MODEL	WIT-50K-HU
Input Data (PV)
Max. recommended PV power(for module STC)	109.2kW.
START VOLTAGE	195V.
Max. input voltage	1100V
Max. open circuit voltage of PV*	1000 V
MPPT nominal voltage/range	550V,180V~800V.
Max. input current per MPP tracker	32A
Max. short-circuit current per MPP tracker	40A.
No. of PV strings per MPP tracker	2
No. of MPP trackers	7
Output Data(AC)
AC nominal power	50kW
Max. AC apparent power	55kVa
Nominal AC voltage/range	380/400/415V,-15%~+10%.
Nominal AC grid frequency/range	50/60Hz,45-55Hz/55-65Hz.
Max. output current	83.3A
Adjustable power factor	-1…+1
THDi	<3% (@100% load)
AC grid connection type	3P3W+PE/3P4W+PE
Input Data(AC)
AC nominal power	50kW/100kW.
Max. AC apparent power	55kVA/100kVA
Nominal AC voltage/range	380/400/415V,-15%~+10%.
Nominal AC grid frequency/range	50/60Hz,45-55Hz/55-65Hz
Max. input current	83.3A/151.5A.
Battery Data(DC)
Continuous charging and discharging power	56.7kW.
Battery voltage range	600-1000V (for 3P3W) / 680-1000V (for 3P4W),
Recommended battery voltage	768v
Max charging and discharging current	83.3A
BMS communication	RS485/CAN.
Dimensions (W/H/D)	820/1350/510mm
Weight	153 kg
Relative humidity	0~100%
Altitude	4000m
Operating temperature range	–30 °C~60 °C (> 50°C, derating).
Relative humidity	0 – 100%
Ingress protection	IP66.
Interfaces: RS485/CAN/USB	Yes
Cooling concept	Natural cooling with internal fan.
Max. operation altitude	4000 m
Safety / EMC standard	IEC/EN 62109-1/-2 and IEC/EN 61000-6-2/-3.
Interfaces: WIFI/LAN	Opt
Warranty (5/10 years)	Yes/Opt.
Display	OLED+LED/WiFi+APP
