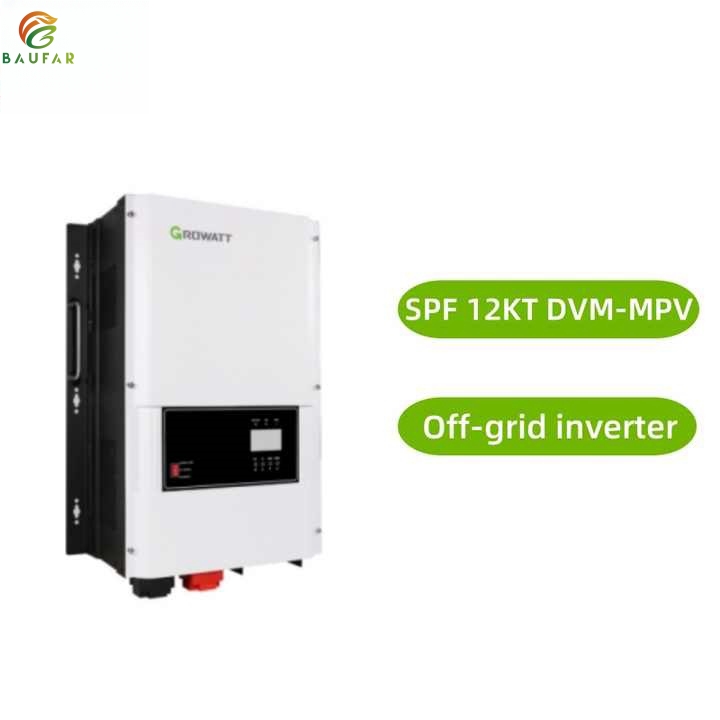

Growatt 12KW Off-grid Inverter SPF 12000T DVM-MPV

Name: Growatt 12KW Off-grid Inverter SPF 12000T DVM-MPV
SKU: SPF 12000T DVM-MPV
Availability: InStock

$1,260.00

Brand Name:Growatt

Model:SPF 12000T DVM-MPV

SKU: SPF 12000T DVM-MPV Category: Solar Inverter

MODEL	SPF 12000T DVM-MPV
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid.
INVERTER OUTPUT
Rated Power	12KW.
Surge Rating	36KW
Waveform	Pure sine wave/ same as input (bypass mode).
Nominal Output Voltage RMS	104-110-115-120/208-220-230-240VAC(optional).
Output Frequency	50Hz/60Hz +/-0.3 Hz.
Inverter Efficiency(Peak)	>85%.
Transfer Time	10ms(max)
SOLAR CHARGER
Maximum PV Charge Current	120A
Maximum PV Array Power	7000W.
Number of independent MPP trackers	2/1.
MPPT Range @ Operating Voltage(VDC)	60~145VDC
Maximum PV Array Open Circuit Voltage	150VDC.
Maximum Efficiency	>98%
AC INPUT
Voltage	240VAC
Selectable Voltage Range	184~272VAC(UPS);154~272VAC(APL)
Frequency Range	50Hz/60Hz (Auto sensing)
Max. Charging Current	100A.
MECHANICAL SPECIFICATIONS
Protection Degree	IP20 .
Dimensions (W/H/D)	380/650/225mm
Weight	75kg.
OPERATING ENVIRONMENT
Operation Temperature Range	0°C to 45°C
