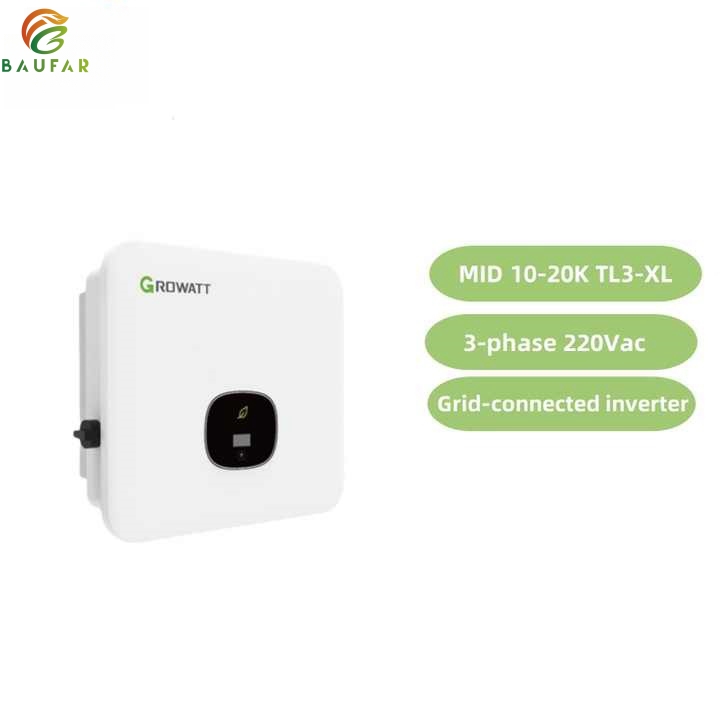

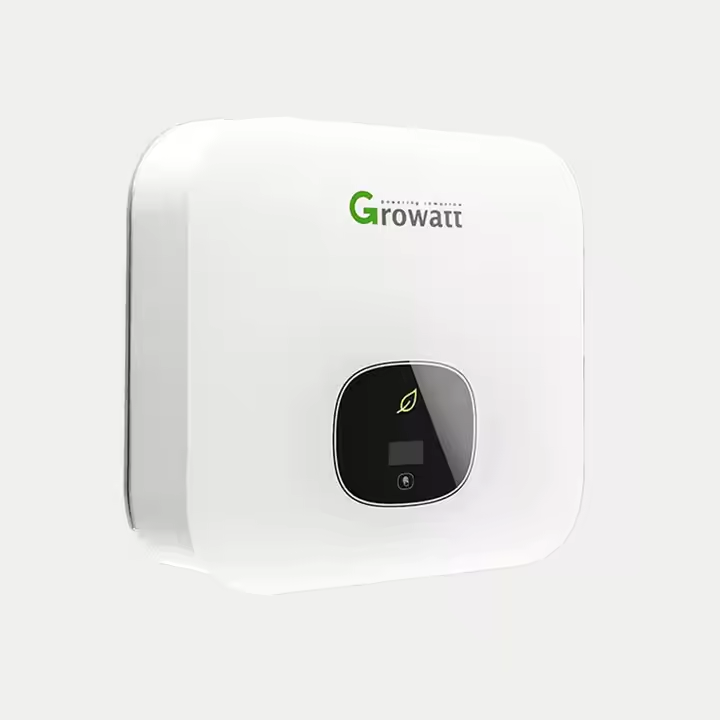

Growatt 10KW On-grid Inverter MID 10K TL3-XL

Name: Growatt 10KW On-grid Inverter MID 10K TL3-XL
SKU: MID 10K TL3-XL
Availability: InStock

$1,218.00

Brand Name:Growatt

Model: MID 10K TL3-XL

Type:Three Phase

SKU: MID 10K TL3-XL Category: Solar Inverter

MODEL	MID 10K TL3-XL
INPUT DATA (PV)
MAX. RECOMMENDED PV POWER	15000W.
START VOLTAGE	250V.
Max. DC voltage	360-650V.
Nominal voltage	360V.
MPP voltage range	200-800V.
No. of MPP trackers	4.
No. of PV strings per MPP tracker	2/2/2/2.
Max. input current per MPP tracker	26A/26A/26A/26A/.
OUTPUT DATA(AC)
AC NOMINAL POWER	10kW
MAX. AC APPARENT POWER	11.1kVa
NOMINAL AC VOLTAGE	220/101.6-139.7V
NOMINAL AC GRID FREQUENCY	50/60 Hz (46-54Hz/56-64Hz).
MAX. OUTPUT CURRENT	29.2A
ADJUSTABLE POWER FACTOR	0.8leading…0.8lagging.
THDI	<3%
AC GRID CONNECTION TYPE	3W+N+PE.
Efficiency
Max.efficiency	98%.
European efficiency	97.5%
MPPT efficiency	99.9%.
Protection devices
DC reverse polarity protection	Yes.
DC switch	Yes
AC/DC surge protection	Type III / Type III.
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
AFCI protection	Optional.
General data
Dimensions (W / H / D)	580/435/230mm
Weight	31kg
Operating temperature range	–25°C … +60°C.
Nighttime power consumption	< 0.5W
Topology	Transformerless.
Cooling	Natural convection
Protection degree	IP65
Relative humidity	0-100%
Altitude	4000m
DC connection	H4/MC4(Optional)
AC connection	Connector
Display	OLED+LED/WIFI+APP
Interfaces: RS485 / USB/Wi-Fi/ GPRS/ RF/LAN	Yes/Yes/Optional.
Warranty: 5 years / 10 years	Yes /Optional.
