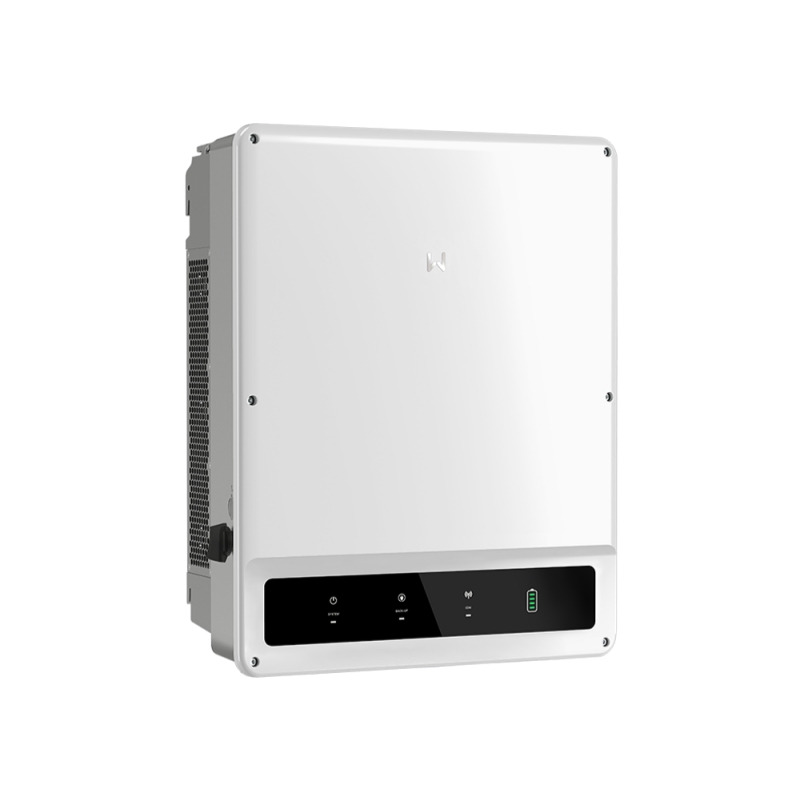

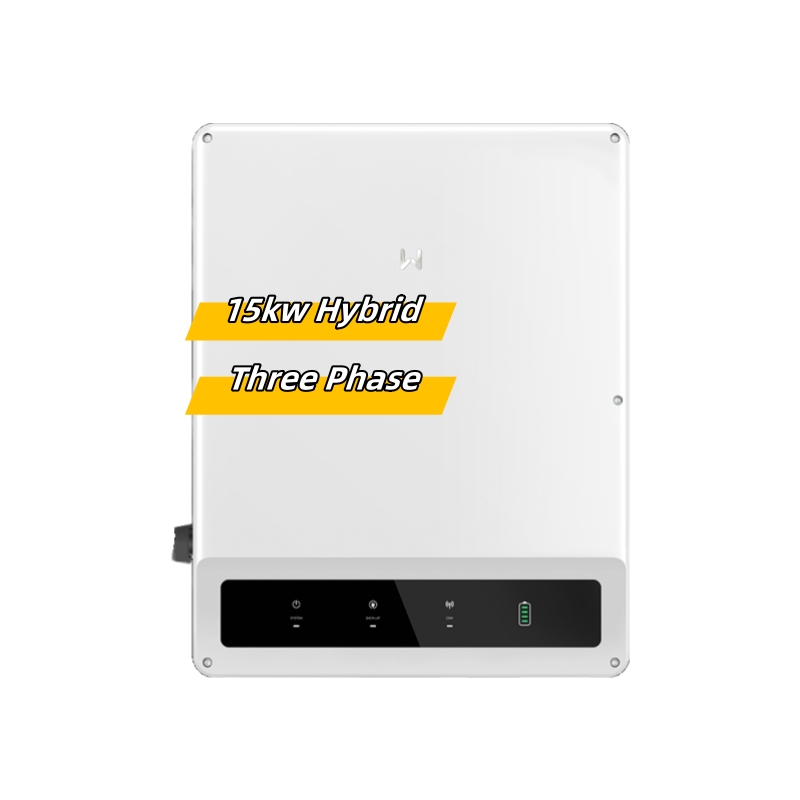

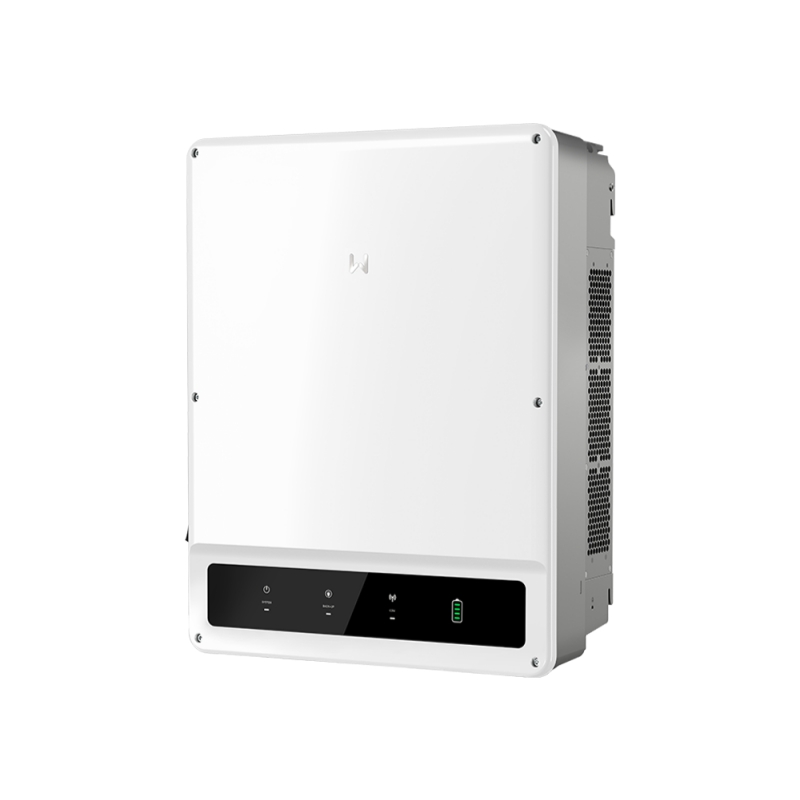

Goodwe Hybrid Inverter 15K-ET 15Kw Three Phase

Name: Goodwe Hybrid Inverter 15K-ET 15Kw Three Phase
SKU: 15K-ET
Availability: InStock

Goodwe Hybrid Inverter 15K-ET 15Kw Three Phase

$1,458.00

Brand Name: Goodwe

Model: 15K-ET

Type: Solar Hybrid Inverter Three Phase

SKU: 15K-ET Category: Solar Inverter Tag: Goodwe Hybrid Inverter

Description
Reviews (0)

Goodwe Hybrid Inverter 15K-ET 15Kw Three Phase

High Efficiency and Flexibility: Supports up to 150% DC input oversizing and 15A DC input current per string, allowing for greater energy harvest and compatibility with high-power modules.
Enhanced Safety: Integrated with Type II surge protection on the DC side and optional Arc Fault Circuit Interrupter (AFCI), providing upgraded safety and reliability for the PV system.
Smart Control and Monitoring: Features an integrated dry contact for external load control, enabling flexible activation of devices like heat pumps to optimize energy consumption.

MODEL	15K-ET
Battery Input Data
Battery Type	Li-on
Nominal Battery Voltage (V)	500
Battery voltage range (V)	200-800
Start-up Voltage (V)	200
Number of Battery Input	1
Max. Continuous Charging Current (A)	50
Max. Continuous Discharging Current (A)	50.
Max. Charging Power (W)	15000
PV String Input Data
Max. Input Voltage (V)	37500
MPPT Operating Voltage Range (V)	200 ~ 850
Start-up Voltage (V)	200
Nominal Input Voltage (V)	600
Max. Input Current per MPPT (A)	30
Max. Short Circuit Current per MPPT (A)	38
Number of MPP Trackers	3.
Number of Strings per MPPT	2 / 2 / 2
AC Output Side	Goodwe Hybrid Inverter 15K-ET
Nominal Output Power (W)	15000
Nominal Output Apparent Power (VA)	15000
Max. AC Active Power (W)	16500
Max. AC Apparent Power (VA)	15000
Nominal Output Voltage (V)	380 / 400, 3L / N / PE
Output Voltage Range (V)	0 ~ 300
Nominal AC Grid Frequency (Hz)	50/60.
AC Grid Frequency Range (Hz)	45 ~ 65
Max. Output Current (A)	39.9
Max. Efficiency	98.0%
Euro Efficiency	97.5%.
Equipment Protection
PV String Current Monitoring	Integrated
PV Insulation Resistance Detection	Integrated
Residual Current Monitoring	Integrated
PV Reverse Polarity Protection	Integrated
Anti-islanding Protection	Integrated
AC Overcurrent Protection	Integrated
AC Short Circuit Protection	Integrated.
AC Overvoltage Protection	Integrated .
DC Switch	Integrated .
DC Surge Protection	Type III (Type II Optional).
AC Surge Protection	Type III (Type II Optional).
Communication	RS485, WiFi, LAN or 4G or Bluetooth (Optional)
Operating Temperature Range	-30 to +60℃
Relative Humidity	0~100%
Max. Operating Altitude (m)	4000
Dimensions (W/H/D)	520 × 660 × 220mm
Weight	54kg
Noise	<30 dB(A)
Cooling Method	Natural Convection
Operating temperature range	–40 °C~60 °C (> 45°C, derating).
Inverter Topology	Non-isolated
Self-consumption at Night (W)	<3.
Ingress Protection(IP) Rating	IP66
Warranty	5 Years.
Mounting Method	Wall Mounted.
