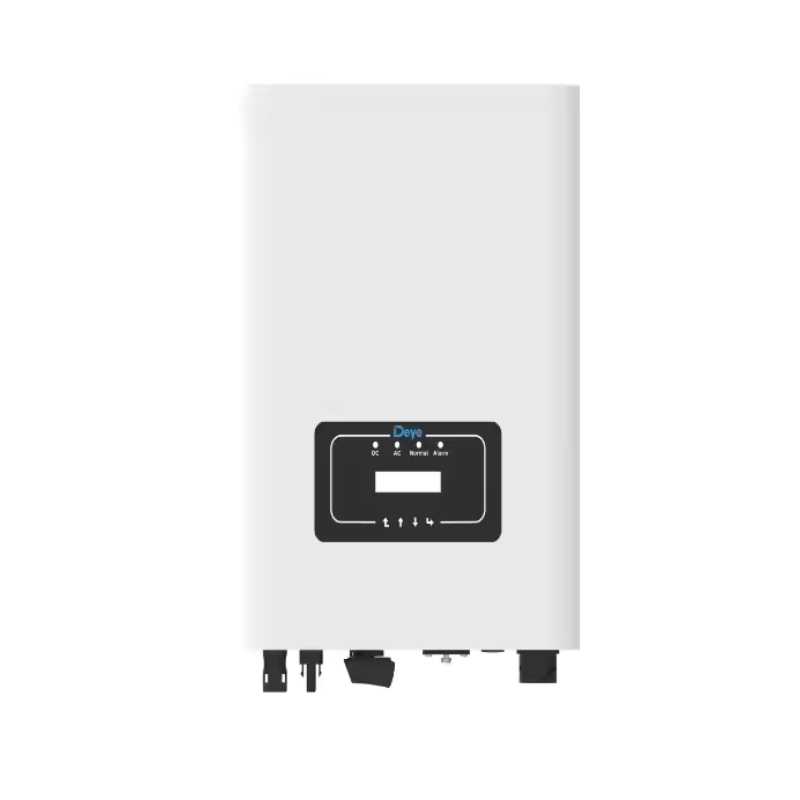

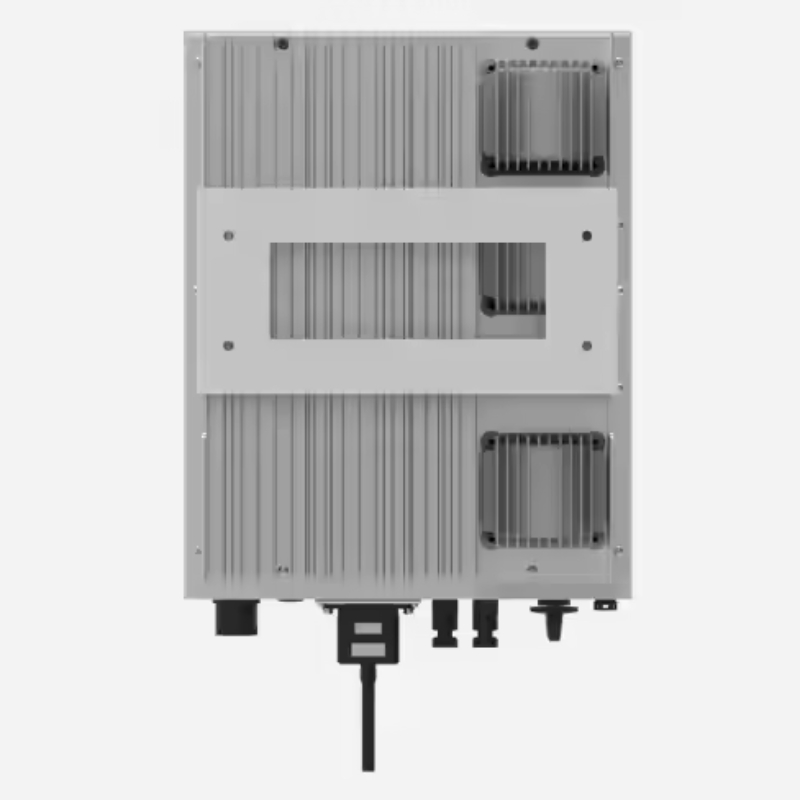

Deye Three Phase Inverter SUN-6K-G06P3-EU-AM2-P1 2MPPT

Name: Deye Three Phase Inverter SUN-6K-G06P3-EU-AM2-P1 2MPPT
SKU: SUN-6K-G06P3-EU-AM2-P1
Availability: InStock

$499.00

Brand Name:Deye

Model: SUN-6K-G06P3-EU-AM2-P1

Type: Three Phase On Grid

SKU: SUN-6K-G06P3-EU-AM2-P1 Category: Solar Inverter

MODEL	SUN-6K-G06P3-EU-AM2-P1
PV String Input Date
Max. PV Input Power	9kw.
Max. PV Input Voltage	1100v
Start-up Voltage	140v
MPPT voltage range	120-1000v
Rated PV Input voltage	600v
Max. Operating PV Input Current	20+20A
Max. Input Short Circuit Current	30+30A.
No. of MPP Trackers	2/1+1
No. of MPP trackers	7
Output Data(AC)
Rated AC Output Active Power	7kW
Max. AC Output Apparent Power	7.7kVa
Rated AC output current	10.7/10.2
Max. AC Output Current	11.7/11.2
Rated output voltage/range	220/380V, 230/400V 0.85Un-1.1Un.
Grid Connection Form	3L/N/PE
THDi	<3% (@100% load).
Rated Output Grid Frequency/Range	50/45-55, 60/55-65HZ
DC Injection Current	<0.5%ln
Max. Efficiency	98.2%.
MPPT Efficiency	>99%
DC Polarity Reverse Connection Protection	Yes
AC Output Overcurrent Protection	Yes
DC Component Monitoring	Yes.
Ground Fault Current Monitoring	Yes
Overvoltage Load Drop Protection	Yes
Communication Interface	RS485/RS232.
Operating Temperature Range	-25 to +65℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	2000m
Dimensions (W/H/D)	2830×4630×1780mm
Weight	11kg
Noise	≤ 45 dB
Type Of Cooling	natural cooling
Operating temperature range	–30 °C~60 °C (> 50°C, derating).
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC).
Ingress Protection(IP) Rating	65
Warranty	5 Years.
Safety / EMC standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2.
