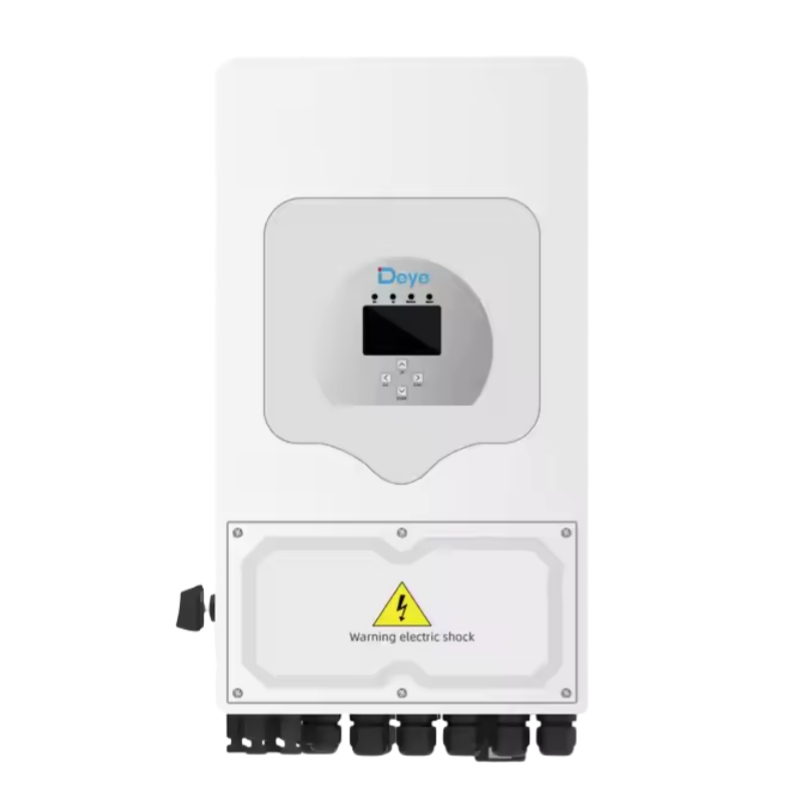

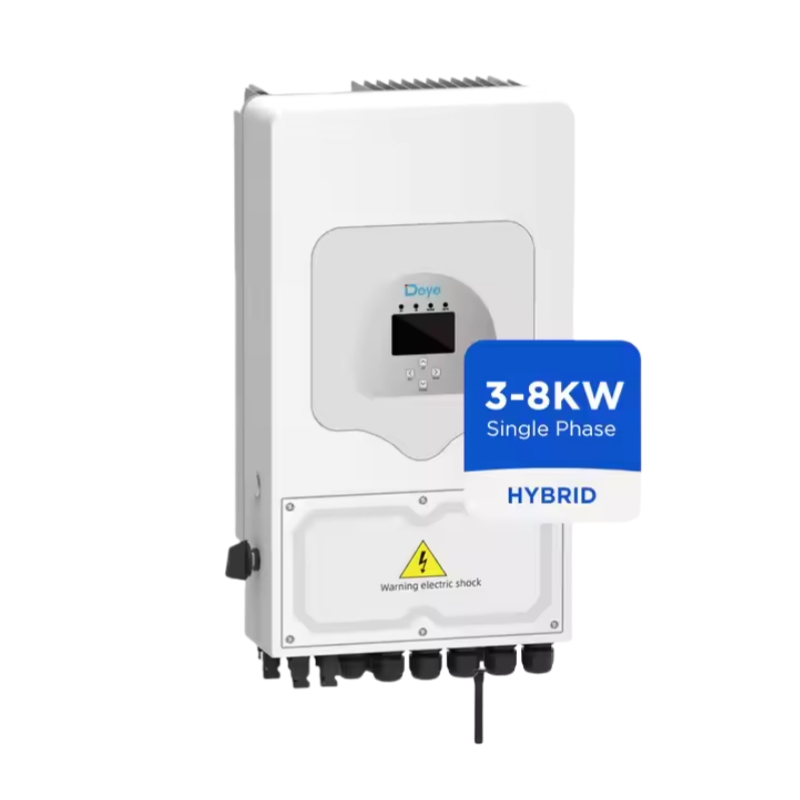

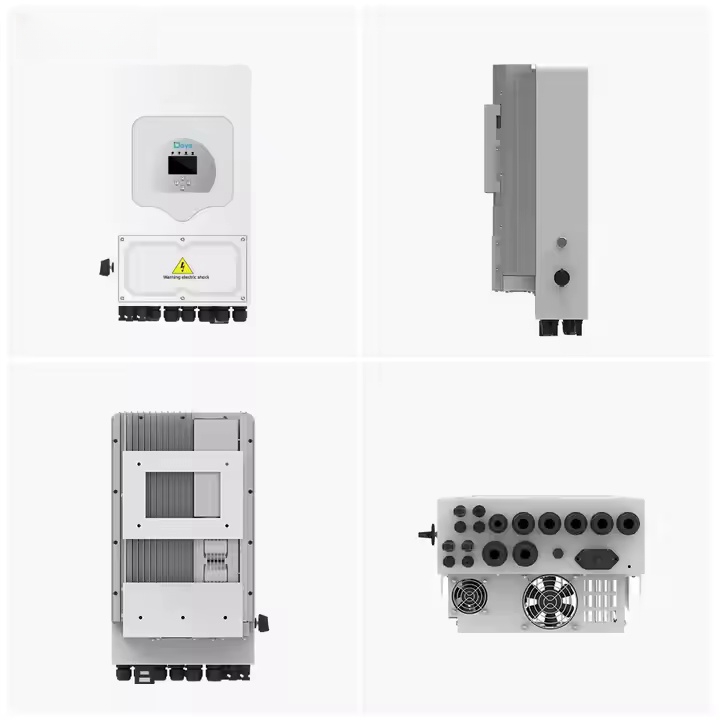

Deye SUN-6K-SG05LP1 6kw Single Phase Hybrid Solar Inverter

Name: Deye SUN-6K-SG05LP1 6kw Single Phase Hybrid Solar Inverter
SKU: SUN-6K-SG05LP1
Availability: InStock

Deye SUN-6K-SG05LP1 6kw Single Phase Hybrid Solar Inverter

$899.00

Brand Name:Deye

Model: SUN-6K-SG05LP1-EU

Type: Single Phase Hybrid Solar Inverter

SKU: SUN-6K-SG05LP1 Category: Solar Inverter Tag: Deye Hybrid Inverter

Description
Reviews (0)

Deye SUN-6K-SG05LP1 6kw Single Phase Hybrid Solar Inverter with Battery Supported

Colorful touch LCD, IP65 protection degree
AC couple to retrofifit existing solar system
Max. 16 pcs parallel for on-grid and off-grid

operation; Support multiple batteries parallel
Max. charging/discharging current of 190A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

MODEL	SUN-6K-SG05LP1-EU
PV String Input Data
Max. PV Access Power	12kw.
Max PV Input Power	9.6kw
Max?PV?Input Voltage	500v
Start-up Voltage	125v
MPPT Voltage Range	150-425v
Rated?PV?Input Voltage	370v
Max. Operating PV Input Current	13+13A
Max. Input Short Circuit Current	17+17A.
No. of MPP Trackers	2/1+1
AC Input/Output Data
Rated AC Input/Output Active Power	6kW
Max AC Input/Output Apparent Power	6.6kVa
Peak Power (off-grid)	2 times of rated power,10s.
Rated AC Input/Output Current	27.3/26.1
Max AC Input/Output Current	30/28.7
RMax Continuous AC Passthrough (grid to load)	40A.
Rated Input/Output Voltage/Range	220V/230 0.85Un-1.1Un
Grid Connection Form	L+N+PE
THDi	<3% (@100% load).
Rated Input/Output Grid Frequency/Range	50Hz/45Hz-55Hz???? 60Hz/55Hz-65Hz
DC Injection Current	<0.5%ln
Power Factor Adjustment Range	0.8 leading-0.8lagging
Max. Efficiency	97.6%.
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range	40-60v
Max.Charging Current	135A
Max.Discharging Current	135A
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	1
Communication Interface	RS485/RS232/CAN.
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
Operating Temperature Range	-40 to +60℃, >45℃?Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	2000m
Dimensions (W/H/D)	3300×5800×2320mm
Weight	24.9kg
Noise	＜30?dB(A)
Type Of Cooling	Intelligent air cooling
Operating temperature range	–30 °C~60 °C (> 50°C, derating).
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC).
Ingress Protection(IP) Rating	65
Warranty	5 Years.
Safety / EMC standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2.

Grid Regulation

IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,G99,VDE-AR-N 4105

Deye SUN-6K-SG05LP1 Integrated

DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
