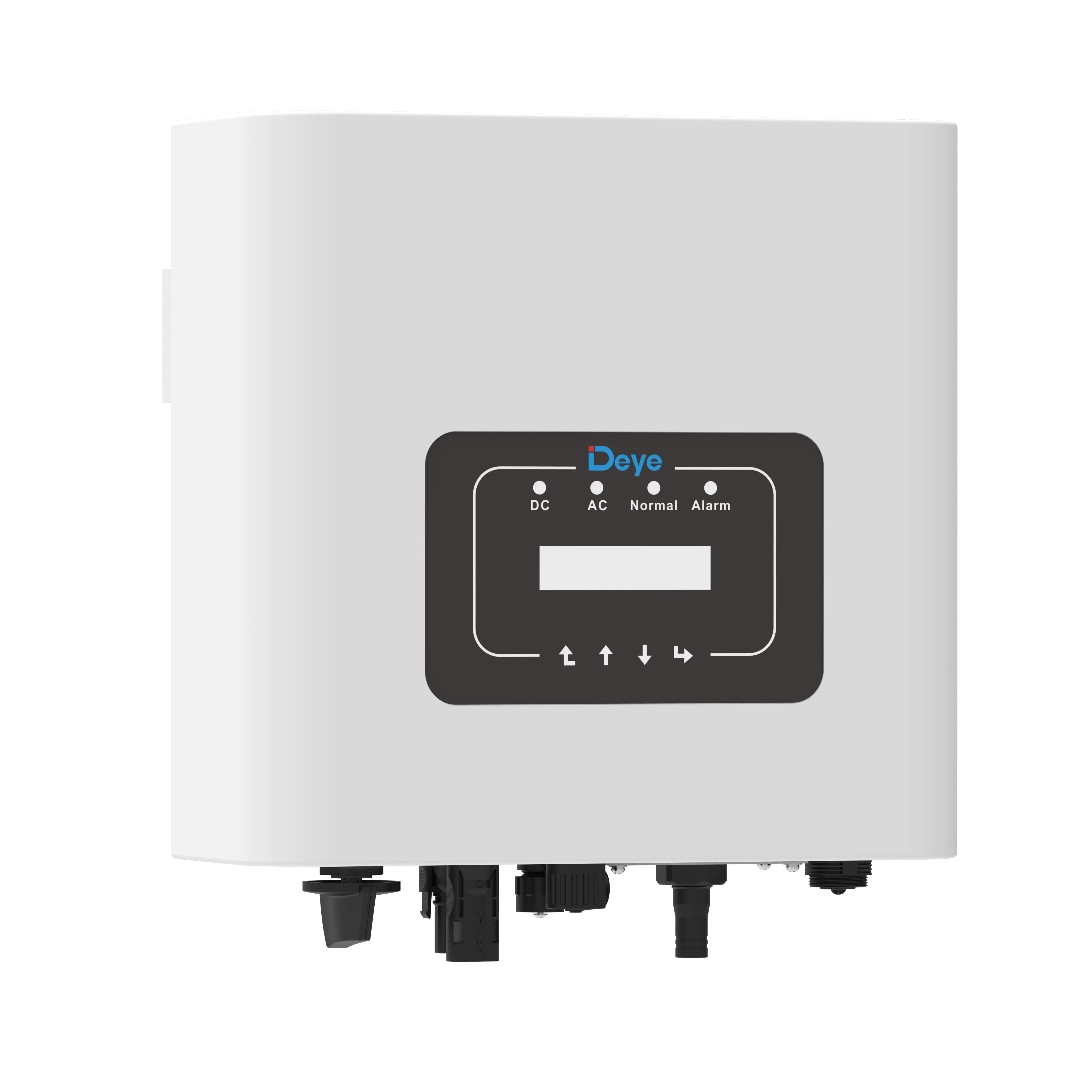

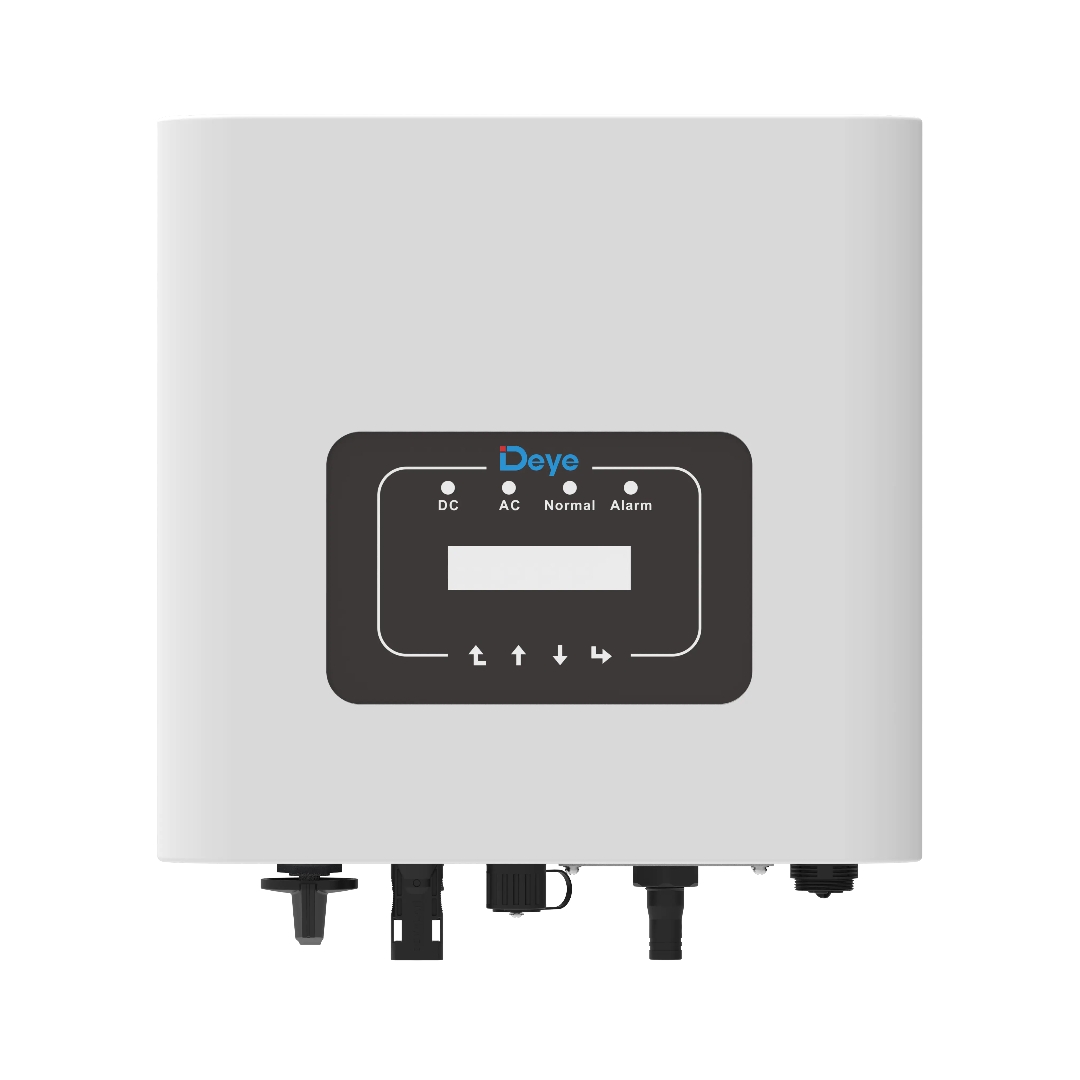

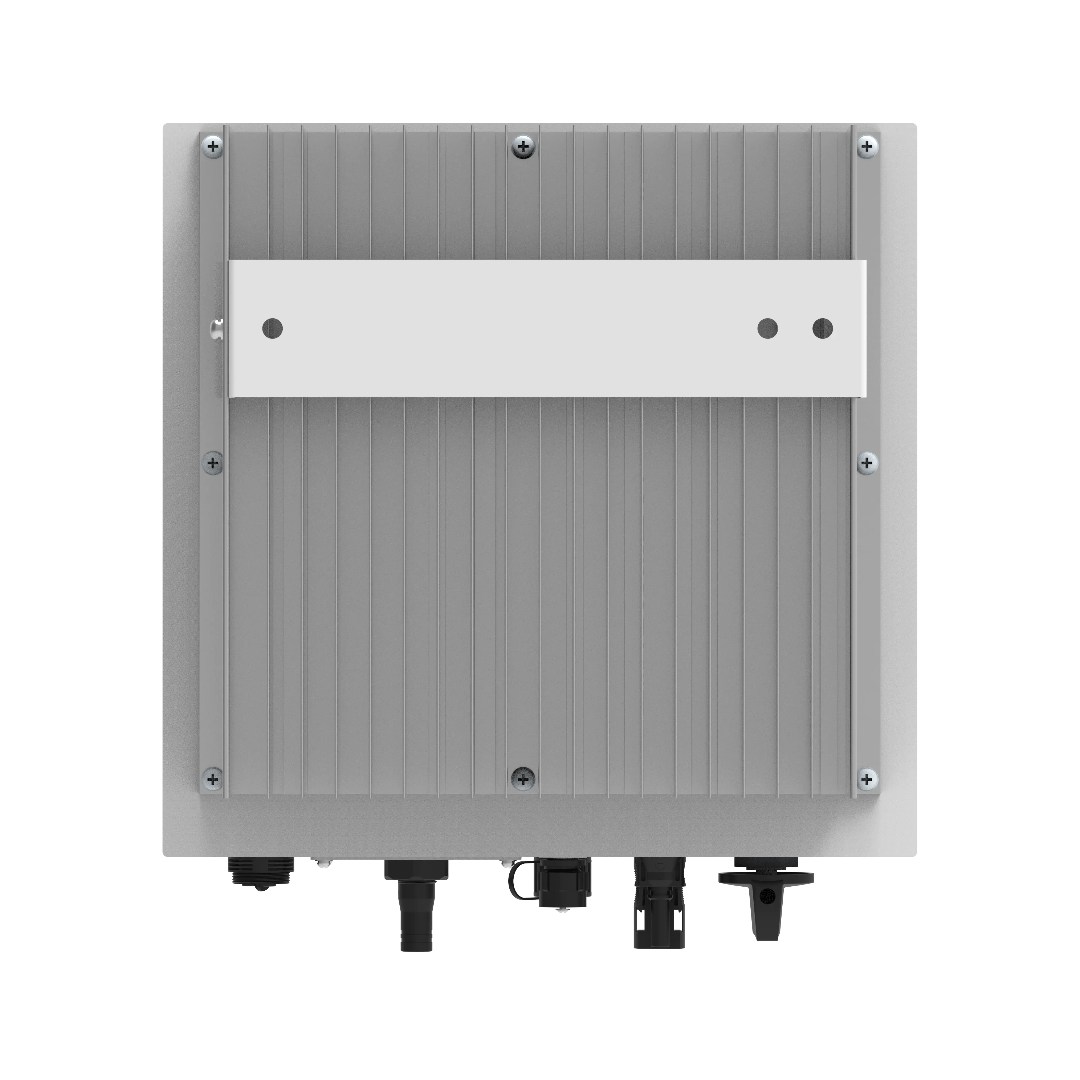

Deye Single Phase Inverter SUN-2K-G04P1-EU-AM1 Grid Tied

Name: Deye Single Phase Inverter SUN-2K-G04P1-EU-AM1 Grid Tied
SKU: SUN-2K-G04P1-EU-AM1
Availability: InStock

$289.00

Brand Name:Deye

Model: SUN-2K-G04P1-EU-AM1 MPPT

Type: Singe Phase Grid Tied

SKU: SUN-2K-G04P1-EU-AM1 Category: Solar Inverter Tag: Deye Single Phase Inverter

MODEL	SUN-2K-G04P1-EU-AM1
PV String Input Date
Max. PV Input Power	2.6kw.
Max. PV Input Voltage	550v
Start-up Voltage	80v
MPPT voltage range	70-500v
Rated PV Input voltage	360v
Max. Operating PV Input Current	20A
Max. Input Short Circuit Current	30A.
No. of MPP Trackers/No. of Strings? MPP Tracker	1/1
No. of MPP trackers	7
Output Data(AC)
Rated AC Output Active Power	2kW
Max. AC Output Apparent Power	2.2kVa
Rated AC output current	9.1/8.7
Max. AC Output Current	10/9.6
Rated output voltage/range	220/230 0.85Un-1.1Un
Grid Connection Form	L+N+PE
THDi	<3% (@100% load).
Rated Output Grid Frequency/Range	50/45-55, 60/55-65HZ
DC Injection Current	<0.5%ln
Max. Efficiency	97.3%.
MPPT Efficiency	>99%
DC Polarity Reverse Connection Protection	Yes
AC Output Overcurrent Protection	Yes
DC Component Monitoring	Yes.
Ground Fault Current Monitoring	Yes
Overvoltage Load Drop Protection	Yes
Communication Interface	RS485/RS232.
Operating Temperature Range	-25 to +65℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	2000m
Dimensions (W/H/D)	280mm310mm184mm
Weight	6.35kg
Noise	≤ 35 dB
Type Of Cooling	natural cooling
Operating temperature range	–30 °C~60 °C (> 50°C, derating).
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC).
Ingress Protection(IP) Rating	65
Warranty	5 Years.
Safety / EMC standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2.
