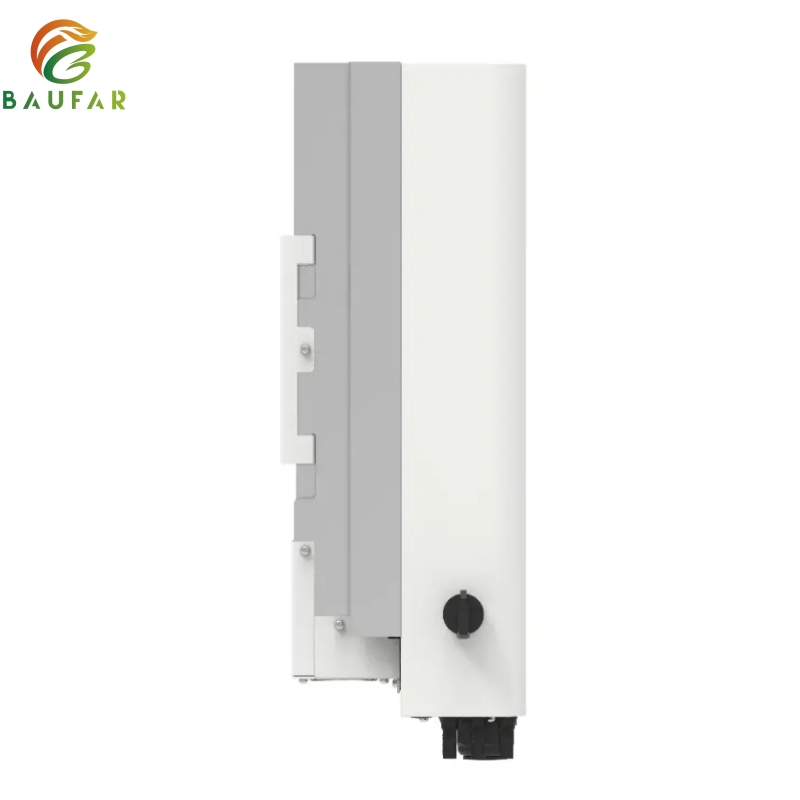

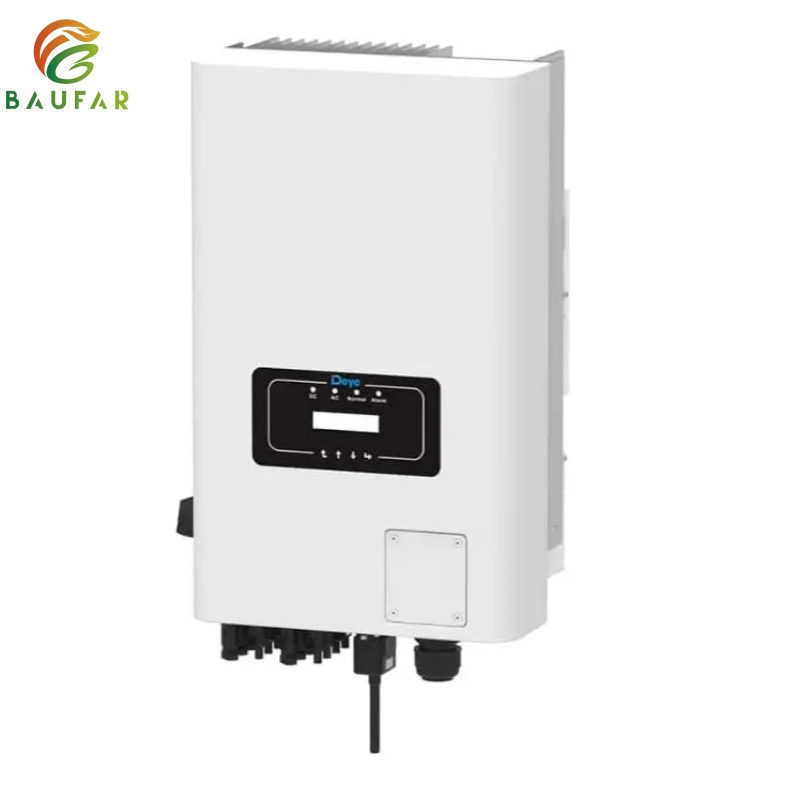

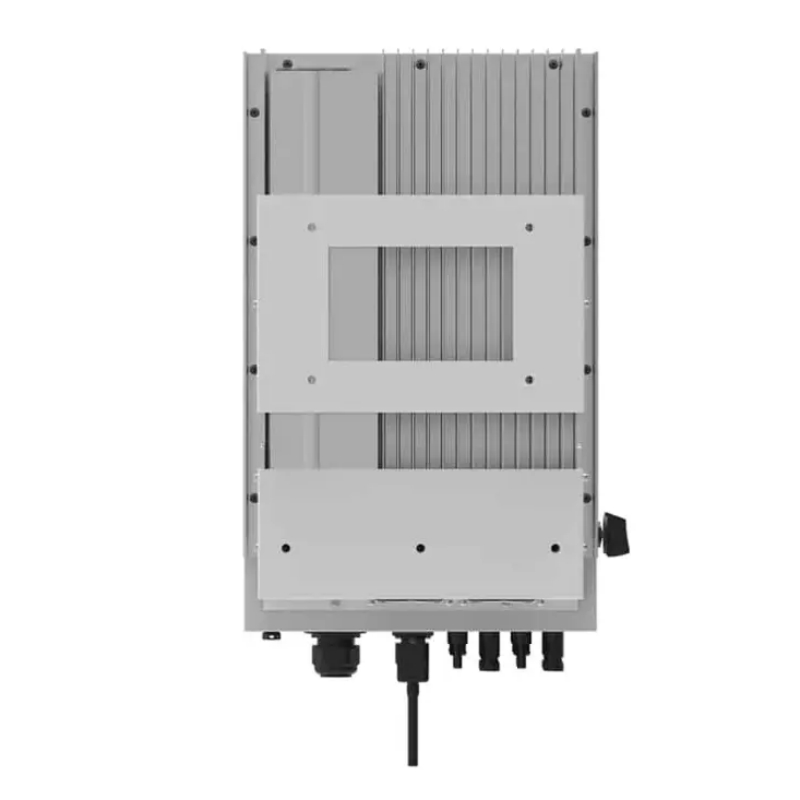

Deye Inverter SUN-35K-G04 Three Phase Grid Tied Inverter

Name: Deye Inverter SUN-35K-G04 Three Phase Grid Tied Inverter
SKU: SUN-35K-G04
Availability: InStock

$1,188.00

Brand Name: Deye

Model: SUN-35K-G04

Type: Three Phase Grid Tied 2 MPPT Inverter

SKU: SUN-35K-G04 Category: Solar Inverter Tag: Deye Inverter SUN-35K-G04

MODEL	SUN-35K-G04
PV String Input Data
Max PV Input Power	45.5kw
Max?PV?Input Voltage	1100v
Start-up Voltage	250v
MPPT Voltage Range	200-1000v
Rated?PV?Input Voltage	600v
Max. Operating PV Input Current	60+60A
Max. Input Short Circuit Current	40+40A.
No. of MPP Trackers	2/3+3
AC Output Side	Deye SUN-30K-G04 Inverter
Rated AC Input/Output Active Power	35kW
Max AC Input/Output Apparent Power	38.5kVa
Rated AC Input/Output Current	53/50.7
Max AC Input/Output Current	58.3/55.8
Rated Input/Output Voltage/Range	220V/380v,230/400v 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
THDi	<3% (of nominal power).
DC Injection Current	<0.5%ln
Power Factor Adjustment Range	0.8 leading-0.8lagging
Max. Efficiency	98.6%
Euro Efficiency	98.1%.
Equipment Protection
DC Polarity Reverse Connection Protection	Yes
AC Output Overcurrent Protection	Yes
AC Output Overvoltage Protection	Yes.
AC Output Short Circuit Protection	Yes
Thermal Protection	Yes
DC Component Monitoring	Yes
Communication Interface	RS485/RS232/CAN.
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
Operating Temperature Range	-25 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	4000m
Dimensions (W/H/D)	362mm577mm215mm
Weight	28.7kg
Noise	≤ 60 dB(A)
Type Of Cooling	Intelligent air cooling
Operating temperature range	–40 °C~60 °C (> 45°C, derating).
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC).
Ingress Protection(IP) Rating	IP65
Warranty	5 Years.
Safety / EMC standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2.
