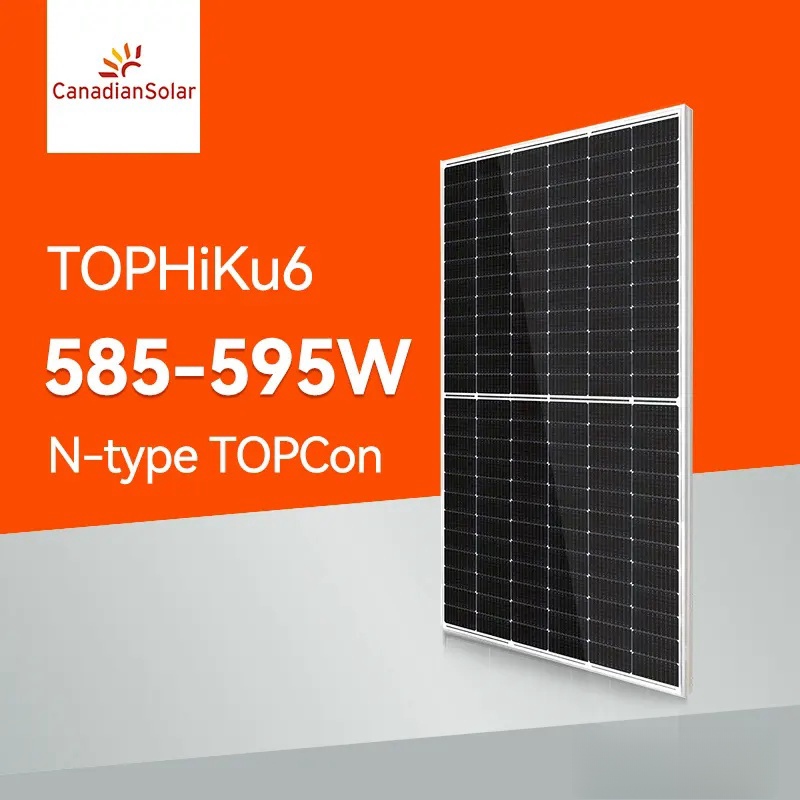

Canadian Solar Panel TOPHiKu6 N-type TOPCon 570W-600W

Name: Canadian Solar Panel TOPHiKu6 N-type TOPCon 570W-600W
SKU: CS6W-570-600T
Availability: InStock

Canadian Solar Panel TOPHiKu6 N-type TOPCon 570W-600W

$85.80

Brand: Canadian Solar Panel

Type: TOPHiKu6 N-type TOPCon

Model No: CS6W-570-600T

SKU: CS6W-570-600T Category: Solar Energy Panel

Description
Reviews (0)

Canadian Solar Panel TOPHiKu6 N-type TOPCon cell CS6W-570-600T 575W 580W 585W 590W 595W 600W solar power panel

1st year power degradation ≤1%;
Power Performance Warranty 30 Years
16BB Cell Technology
Lower temperature coefficient(Pmax):-0.29%/C
Size:2278x1134x30 mm

MECHANICAL SPECIFICATION.
Format	2278113430mm
Weight	27.6kg±5%
Cell	TopCon N-Type cell
Junction Box	IP68, 3 bypass diodes
Connector	T6 or MC4 or MC4-EVO2 or MC4-EVO2A.

Canadian Solar Panel Product Characteristics

Type

Monocrystalline.

Model No.

570

575

580

585

590

595

600

Warranty

Product Warranty

12 Years

Electrical Data at STC

Maximum Power (Pmax)

570 Wp

575 Wp

580 Wp

585 Wp

590 Wp

595 Wp

600 Wp

Voltage at Maximum Power (Vmpp)

42.7 V

42.9 V

43.1 V

43.3 V

43.5 V

43.7 V

43.9 V

Current at Maximum Power (Impp)

13.35 A

13.41 A

14.46 A

13.52 A

13.57 A

13.62 A

13.68 A

Open Circuit Voltage (Voc)

51.8 V

52 V

52.2 V

52.4 V

52.6 V.

52.8 V

53 V

Short Circuit Current (Isc)

13.81 A

13.88 A

14 A.

14.06 A

14.12 A.

14.18 A

Panel Efficiency

22.1 %

22.3 %

22.5 %.

22.6 %

22.8 %

23 %

23.2 %

Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m², cell temperature 25°C.

Electrical Data at NOCT

Maximum Power (Pmax).

431 Wp

435 Wp.

439 Wp

443 Wp

446 Wp

450 Wp

454 Wp

Voltage at Maximum Power (Vmpp).

40.4 V

40.6 V

40.7 V

40.9 V

41.1 V

41.3 V

41.5 V

Current at Maximum Power (Impp).

10.68 A

10.72 A.

10.77 A

10.81 A

10.85 A

10.89 A

10.94 A

Open Circuit Voltage (Voc).

49 V

49.2 V.

49.4 V

49.6 V

49.8 V

50 V

50.2 V

Short Circuit Current (Isc)

11.14 A.

11.19 A

11.23 A

11.29 A

11.34 A

11.39 A

11.43 A

Temperature

41±3 °C.

Nominal Operating Cell Temperature (NOCT): 800W/m², AM 1.5, windspeed 1m/s,ambient temperature 20°C.

Thermal Ratings

Operating Temperature Range

-40~85 °C.

Temperature Coefficient of Pmax

-0.29 %/°C.

Temperature Coefficient of Voc

-0.25 %/°C

Temperature Coefficient of Isc

0.05 %/°C.

Maximum Ratings

Maximum System Voltage

1500 V

Series Fuse Rating

25 A

Material Data

Panel Dimension (H/W/D)

2278x1134x30 mm.

Weight

27.6 kg

Cell Number

144

Glass Type

Anti-reflection Coating, Tempered.

Glass Thickness

3.2 mm

Frame Type

Anodized Aluminium

Junction Box Diodes

Junction Box Protection Class

IP 68

Connector Type

MC4

Cable Crossection

4 mm²

Cable Length

300 mm
