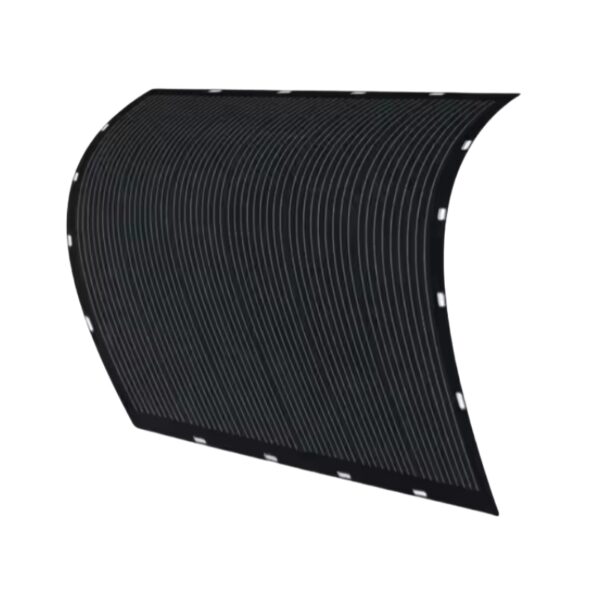

Balcony Photovoltaic System Solar Panel Flexible 200w 210w

Name: Balcony Photovoltaic System Solar Panel Flexible 200w 210w
SKU: BAUSP200PC
Availability: InStock

$48.00

Model: BAUSP200PC

Warranty: 15 years quality, 25 years power

Max Power Range: 200 – 210w

Certification: CE,? ISO9001/ISO1400, TUV, CQC

Passed EN45545 EU flame retardant standard

SKU: BAUSP200PC Category: Solar Energy Panel Tag: Balcony Photovoltaic System

CONDITION	New
PRODUCT NAME:	Flexible Solar Panel 380w
MODEL TYPE:	BAUSP200PC
MAX POWER:	200w
MAX-OPERATING VOLTAGE:	15.90V
?MAX-OPERATING CURRENT:	12.63a
OPEN CIRCUIT VOLTAGE:	19.0v
SHORT CIRCUIT CURRENT:	13.52a
MODULE EFFICIENCY:	18.3%
DIMENSION(LWH):	13807902.5mm
WEIGHT:	3.4kg
BACKBOARD SPECIFICATION:	backboard(white)
CELL:	56(4*14)/10bb P type
CELL TYPE:	P-type Battery
ENCAPSULAT MATERIAL:	EVA
FRAME:	none
WEIGHT PER UNIT AREA:	3.12kg/㎡
POWER PER UNIT AREA:	183.5-192.6W/㎡
CONNECTOR:	MC4 Compatible
JUNCTION BOX:	IP68
CABLE SPECIFICATIONS:	4m㎡, or customized
NOMINAL MODULE OPERATING:	41 ± 2 ℃
TEMPERATURE COEFFIENT OF PMAX:	-0.38%/℃
TEMPERATURE COEFFIENT OF VOC:	-0.28%/℃
TEMPERATURE COEFFIENT OF ISC:	0.02%/℃
MAXIMUM SYSTEM VOLTAGE:	DC1500v (IEC)
MAXIMUM SERIES FUSE RATING:	20a
OPERATING TEMPERATURE RANGE:	-40℃ — +85℃
