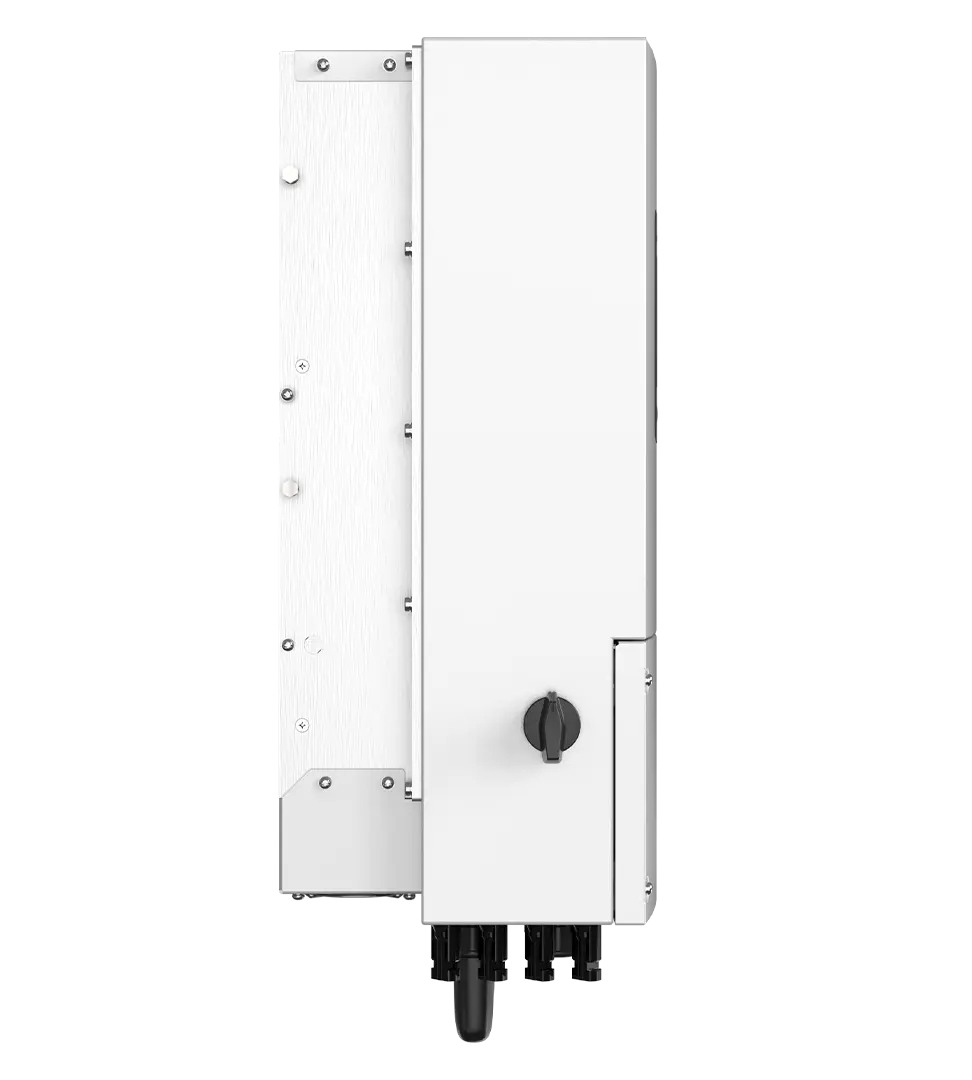

Solis S6-EH3P10K02-NV-YD-L Energy Storage Inverter

Name: Solis S6-EH3P10K02-NV-YD-L Energy Storage Inverter
SKU: S6-EH3P10K2-H-NV-YD-L
Availability: InStock

Solis S6-EH3P15K02-NV-YD-L Energy Storage Inverter

Solis S6-EH3P10K02-NV-YD-L Low Voltage Energy Storage Inverter

Solis S6-EH3P10K02-NV-YD-L Energy Storage Inverter

$1,832.00

Brand Name:Solis

Model: S6-EH3P10K2-H

Type: Three-phase

SKU: S6-EH3P10K2-H-NV-YD-L Category: Solar Inverter Tag: S6-EH3P10K2-H-NV-YD-L

Description
Reviews (0)

Solis S6-EH3P10K02-NV-YD-L Energy Storage Inverter

10 seconds of 200% overload capability.
Multiple inverters can operate together to form a microgrid.
Generator-compatible to extend backup duration during grid power outage.
Supports dual backup ports for intelligent control of critical and non-critical loads.
Supports Unbalanced and Half-Wave Loads on both the Grid and Backup Port.

MODEL	S6-EH3P10K2-H-NV-YD-L
MAX. USABLE PV INPUT POWER	16 kW.
MAX. INPUT VOLTAGE	1000 V.
START-UP VOLTAGE	160 V
RATED VOLTAGE	500 V
MPP VOLTAGE RANGE	200 – 850V.
NO. OF MPP TRACKERS	2 / 3
MAX INPUT CURRENT	20 A / 40 A.
MAX. SHORT-CIRCUIT CURRENT	30 A / 50 A.
BATTERY
BATTERY TYPE	Li-ion/ Lead-acid
BATTERY VOLTAGE RANGE	40 – 60 V.
MAX. CHARGE / DISCHARGE CURRENT	180 A.
COMMUNICATION	CAN / RS485
INPUT AC (GRID SIDE)
RATED OUTPUT POWER	10kW
RATED GRID VOLTAGE	3/N/PE, 380 V / 400 V.
RATED GRID FREQUENCY	50 Hz / 60 Hz
RATED GRID OUTPUT CURRENT	15.2 A / 14.4 A
POWER FACTOR	> 0.99 (0.8 leading – 0.8 lagging).
INPUT AC (GRID SIDE)
THDI	<3%
INPUT VOLTAGE RANGE	323 – 460 V.
MAX. INPUT CURRENT	18.3 A / 17.3 A.
FREQUENCY RANGE	45 – 55 Hz / 55 – 65 Hz.
RATED OUTPUT POWER	10kW
Max. input current	15.2 A.
BACK-UP SWITCH TIME	< 10 ms
RATED OUTPUT VOLTAGE	3/N/PE, 380 V / 400 V.
RATED FREQUENCY	50 Hz / 60 Hz.
RATED OUTPUT CURRENT	15.2 A / 14.4 A.
THDV (@LINEAR LOAD)	<3%
MAX.EFFICIENCY	97.60%
EUROPEAN EFFICIENCY	97.0%
DC REVERSE POLARITY PROTECTION	yes.
ANTI-ISLANDING PROTECTION	yes.
Surge protection	yes
SHORT CIRCUIT PROTECTION	yes
DC REVERSE-POLARITY PROTECTION	Yes
DIMENSIONS (W × H × D)	430 × 660 × 305 mm.
WEIGHT	42 kg
TOPOLOGY	Non-isolated
OPERATING AMBIENT TEMPERATURE RANGE	-40 ~ +60°C.
INGRESS PROTECTION	IP66.
NOISE EMISSION (TYPICAL)	< 65 dB(A).
COOLING CONCEPT	Intelligent fan-cooling
MAX. OPERATION ALTITUDE	4000 m
SAFETY / EMC STANDARD	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3.
DC CONNECTION	MC4 Quick connection plug (PV) & Screw terminal (Battery
AC CONNECTION	Screw terminal.
DISPLAY	7.0″ LCD display & Bluetooth + APP.
COMMUNICATION	CAN, RS485, Optional: Wi-Fi, Cellular, LAN.

Grid connection standard

G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/ UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA and PEA
